Introduction

In 2020, Dongqi Crane completed a tailored solution for a mechanical maintenance workshop in the United States: one unit of portable gantry crane, with a lifting capacity of 10 tons, span of 4.5 meters, and lifting height of 2.7 meters.

For procurement professionals across industries, trust is built on details. This photo essay offers a behind‑the‑scenes look at the manufacturing process—from component fabrication to final container loading. No lengthy descriptions, just visual evidence of quality, care, and process control.

---

About Dongqi Crane

Dongqi Crane specializes in the design and manufacture of industrial lifting equipment, including overhead cranes, gantry cranes, and electric hoists. With decades of engineering experience and a strong track record in export projects, the company serves clients in manufacturing, maintenance, logistics, and heavy industry worldwide. Every project follows structured processes to ensure safety, reliability, and compliance with international standards.

---

Engineering at a Glance

Client: Mechanical maintenance workshop, USA
Product: Portable gantry crane
Capacity: 10 tons
Span: 4.5 m
Lifting height: 2.7 m
Key feature: Compact design for easy disassembly, transport, and on‑site assembly

---

Photo Gallery

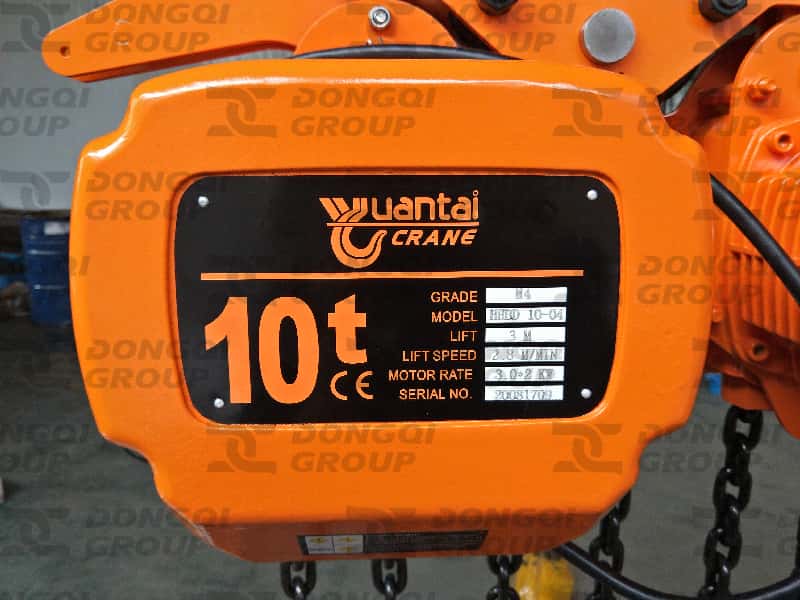

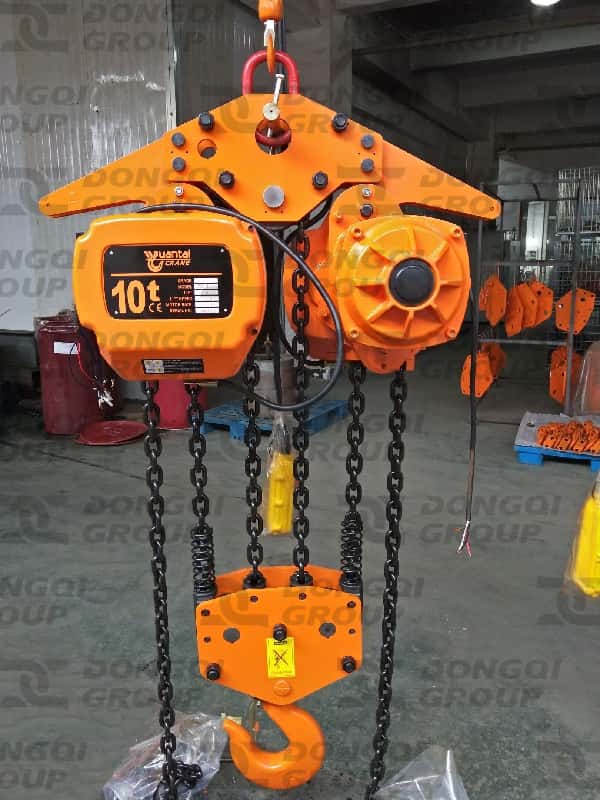

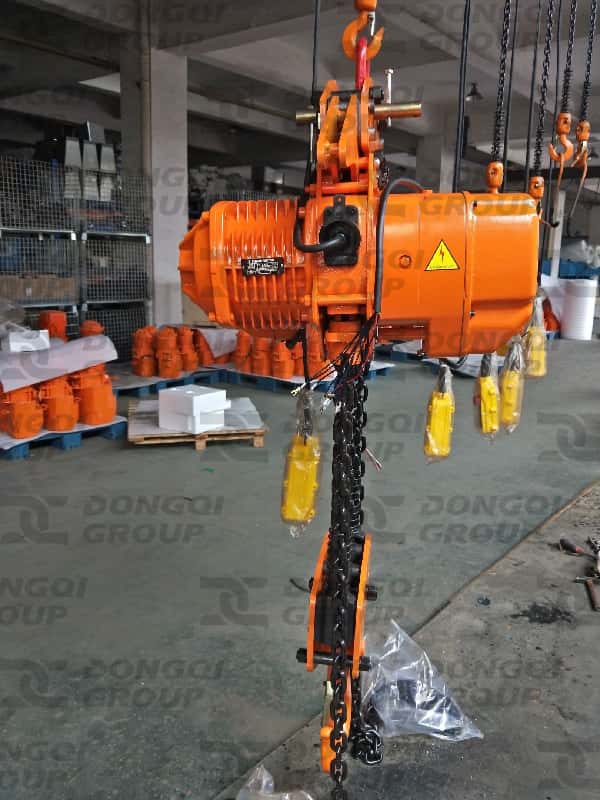

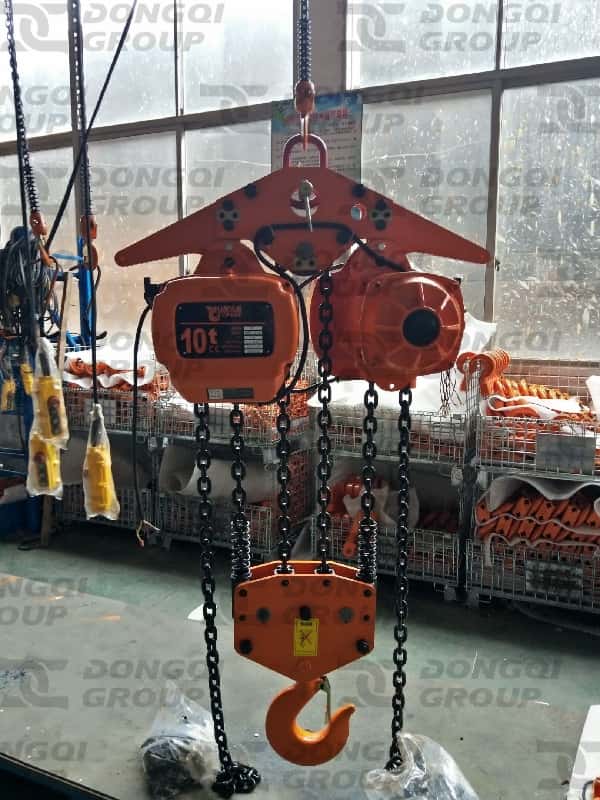

1. Core Component – Electric Chain Hoist

Close‑up of the electric chain hoist, showing the nameplate with rated capacity and specifications. All critical parameters are clearly marked for compliance and traceability.

---

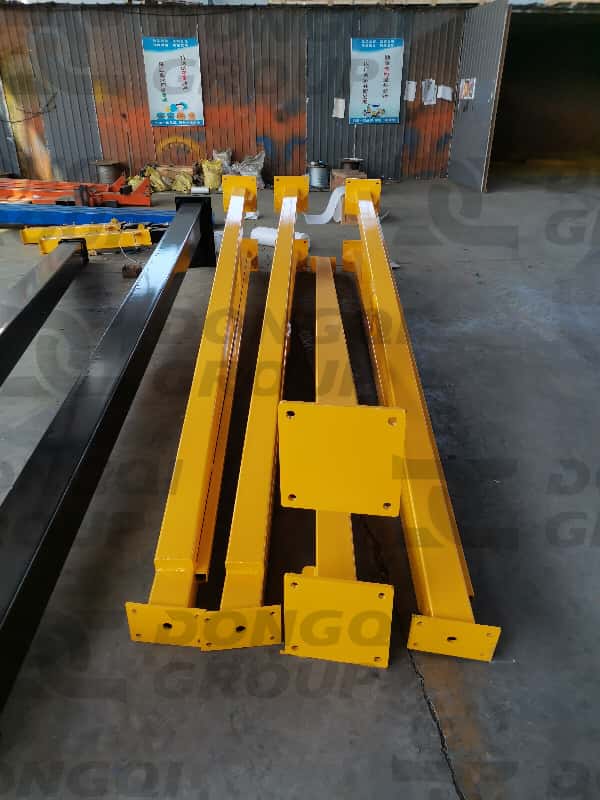

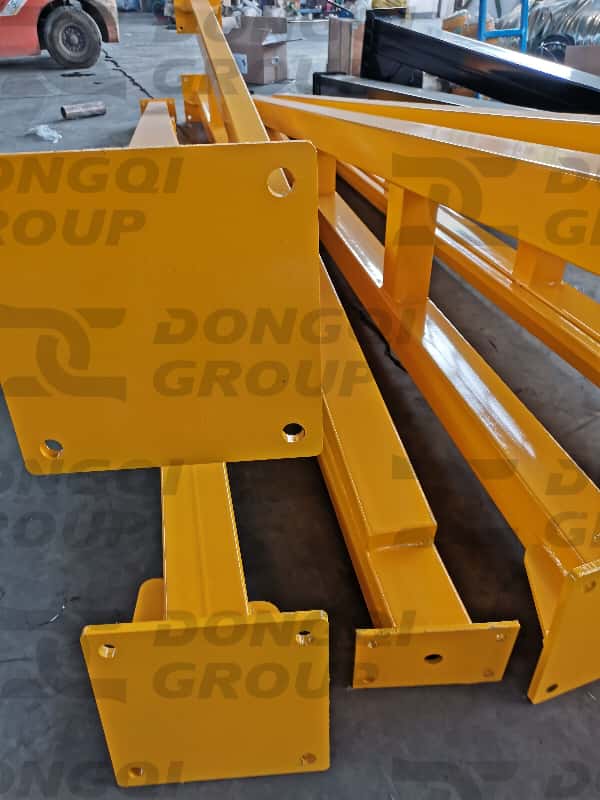

2. Main Structural Component – Outrigger / Leg Section

One of the fabricated outrigger assemblies. Clean welds and structural finishing reflect the quality control applied at each stage of fabrication.

---

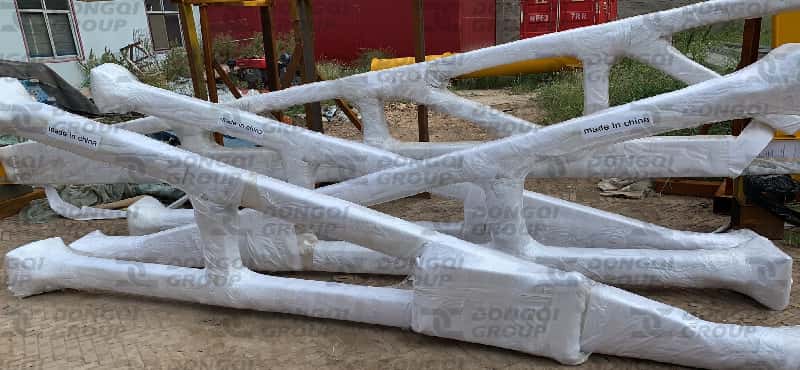

3. Protection During Production – Wrapping for Storage

After passing inspection, components are carefully wrapped with waterproof tarpaulins. This step protects against moisture and dust during temporary storage and final packaging.

---

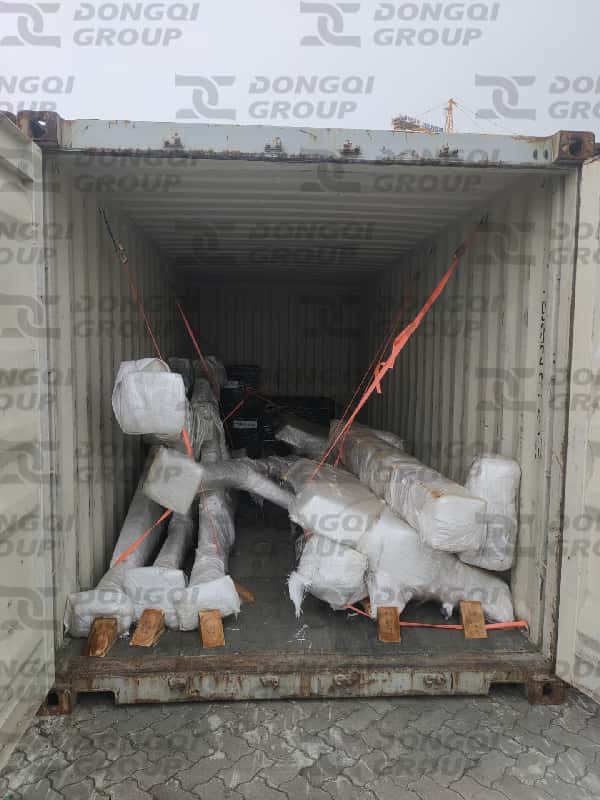

4. Preparing for Shipment – Loading into Containers

All wrapped components are systematically loaded into shipping containers. Each piece is secured to prevent movement during transit, ensuring the crane arrives at the U.S. facility in perfect condition.

---

Why Details Matter

For procurement professionals, what happens before delivery is just as important as the final product. These images show:

• Traceability: Every component is labeled and documented.
• Process discipline: Protection measures like waterproof wrapping are standard practice.
• Logistics readiness: Professional container loading minimizes risks during international shipping.

---

Summary

This 10‑ton portable gantry crane project represents a typical Dongqi Crane export process—clear engineering, controlled production, and meticulous packaging. For buyers looking for reliable lifting equipment suppliers, these behind‑the‑scenes practices offer tangible evidence of how quality is built and delivered.

---
