Parameters of MH type 5t single beam gantry crane
The MH type 5t single beam gantry crane (hereinafter referred to as the 5-ton single main beam gantry crane) is a small and medium-sized crane with rail operation, which is used in conjunction with the 5-ton electric hoist gantry crane. It is suitable for a lifting capacity of 1-32 tons, a span of 12-35 meters, and a working environment of -20 ° C to+40 ° C.

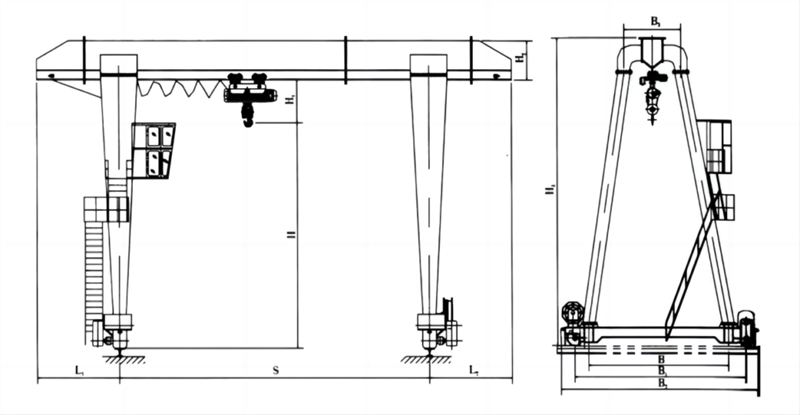

Structural diagram of a 5-ton single beam gantry crane
Parameter dimension table for 5-ton single beam gantry crane
| 起重量Lifting Weight | t | 5吨 | |||||||
| 跨度Span | m | 12 | 16 | 20 | 24 | 30 | |||
| 起升高度(m)Liting Height | m | 6/9 | |||||||
| 运行结构 W o r k i n g P a r t s | 运行速度TravelingSpeod | 地面Ground | m/min | 20 | |||||
| 司机室Controlling Room | 20/30 | ||||||||
| 电动机Molor | 地面Ground | 型号kw | YSEBO₂-4/0.8×2 | YzR132M1-6/2.5×2 | |||||
| 司机室Controlling Room | ZDR100-4/1.5×2 | ||||||||
| 电动葫芦 | 型号Type No | CD, MD₂ | |||||||
| 起升速度Lifting Speed | m/min | 8 0.8/8 | |||||||
| 运行速度Travelling Speed | m/min | 20 | |||||||
| 电动机Motor | 起升Liting | 型号kw | ZD,41-4/7.5 ZDS,0.8/7.5 | ||||||
| 运行Travelling | ZDY,21-4/0.8 | ||||||||
| 工作级别Working class | A3 | ||||||||
| 荐用钢轨Steel Track Recommended | P24 | P38 | |||||||
| 电源Power Supply | 三相交流380W 50HZ | ||||||||
| 起重机质量The Crane Weight | 地面Ground | t | 8.23/10.23 | 11.27/13.27 | 13.17/15.17 | 17.83/19.83 | |||
| 司机室Controlling Room | t | 8.58/10.58 | 11.62/13.62 | 13.52/15.52 | 18.18/20.18 | 25.5 | |||
| 最大轮压 Max.Wheel Pressure | KN | 54/59 | 62/67 | 70/75 | 78/83 | 96 | |||
| 基本尺寸 Basic Dmensions | L, | mm | 3000 | 4000 | 5000 | 6000 | 7500 | ||
| L₂ | mm | ||||||||
| H, | mm | 1160 | |||||||
| H₂ | mm | B00 | 900 | 1000 | 1150 | 1300 | |||
| H₃ | mm | 760/10960 | 8060/11060 | 8160/11160 | 8310/11310 | 11460 | |||
| B | mm | 4500/5500 | 5500/6500 | ||||||
| B, | mm | 5500/6500 | 6500/7500 | ||||||
| B₂ | mm | 6000/7000 | 7100/8100 | ||||||
| B₃ | mm | 1500 | |||||||
