Client: A Leading US-based Manufacturing Facility
Project: Supply of a Custom HD Type 5-Ton Overhead Bridge Crane
Crane Manufacturer: Dongqi Crane
Date of Commissioning: 2025

Executive Summary

In 2025, a prominent US manufacturing plant sought to upgrade its material handling capabilities with a solution that combined robust performance, precision engineering, and space-efficient design. They partnered with Dongqi Crane to design and manufacture a custom-built HD-type 5-ton overhead bridge crane. The successful deployment of this crane has significantly streamlined the client’s internal logistics, enhanced operational safety, and provided a reliable backbone for their production processes.

The Client’s Challenge

The client needed a reliable and efficient overhead crane system to handle components and materials within a specific bay of their factory. The requirements were precise: the crane needed to offer smooth and precise handling for loads up to 5 tons, fit the exact dimensions of their facility, and incorporate modern, energy-efficient components for low maintenance and long-term reliability.

The Dongqi Crane Solution

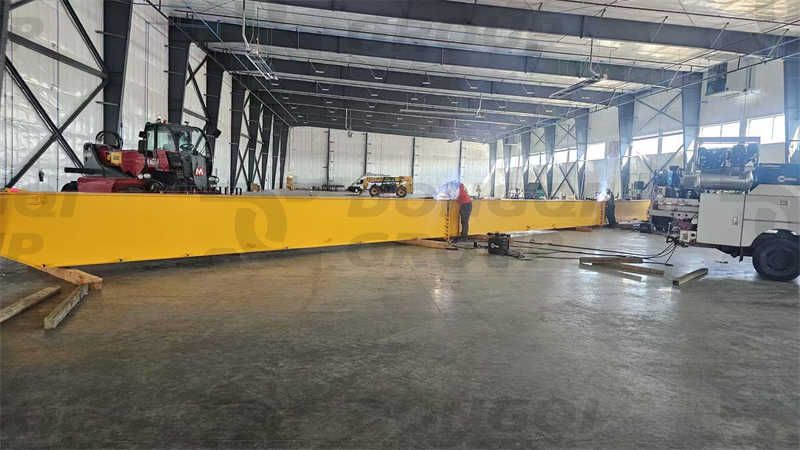

Dongqi Crane engineered a tailored HD-type European-style bridge crane, perfectly configured to meet the client’s specifications. This solution was designed to maximize the available workspace while providing superior performance and control.

Key Specifications of the Delivered Crane:

• Crane Type: HD Type Overhead Bridge Crane
• Hoist Unit: Integrated NR-type European-style electric hoist
• Capacity: 5 Tons
• Span: 31.394 Meters (precisely engineered to fit the building structure)
• Lifting Height: 6.438 Meters (optimized for the facility’s vertical space)
• Runway Rail: P30 (ensuring stable and durable travel)
• Power Supply: 6mm² Sepless Conductor Bar System (providing clean, reliable power without cable drag)

Why This Solution Was Ideal

1. Precision Engineering for a Perfect Fit:
The crane’s exact span of 31.394 meters and a lifting height of 6.438 meters demonstrate Dongqi’s capability for custom fabrication. This ensured a perfect fit within the client’s existing infrastructure, eliminating wasted space and maximizing coverage.

2. Superior Performance with the NR European Hoist:
The integration of the NR-type European-style electric hoist was a key benefit. This hoist design is renowned for its:

• Compact and Lightweight Build: Reducing the overall deadweight of the crane and allowing for a more slender crane structure.
• High Efficiency and Smooth Operation: Ensuring precise load control and minimal sway, which is critical for delicate positioning tasks.
• Low Maintenance Needs: Designed for durability and easy service, reducing downtime and total cost of ownership.

3. Enhanced Reliability and Safety:
The use of a P30 rail provided a solid and stable runway, minimizing wear and tear on the crane’s end trucks. The 6mm² sepless conductor bar system offers a safer and more reliable power supply compared to traditional cable reels, with reduced risk of wear and power interruption.

Results and Benefits for the Client

The implementation of the Dongqi HD-type crane delivered immediate and tangible benefits to the US factory:

• Increased Productivity: Faster and smoother lifting and traveling movements have accelerated material flow.
• Improved Operational Safety: The crane’s precise control and reliable braking systems have created a safer working environment for personnel.
• Reduced Operating Costs: The energy-efficient design and low-maintenance components of the European-style hoist have led to significant savings.
• Optimized Workspace: The custom dimensions ensured no space was wasted, allowing for a more organized and efficient factory layout.

Conclusion

This project for the US manufacturing plant is a testament to Dongqi Crane’s commitment to delivering world-class material handling solutions. By providing a custom-designed, high-quality, and efficient overhead crane, we empowered our client to achieve new levels of productivity and operational excellence. Dongqi Crane continues to be the trusted partner for industries worldwide, bridging the gap between requirement and reality.

---
