Location: Cyprus
Industry: Steel Structure Fabrication
Equipment: BX Type Wall-Mounted Slewing Jib Crane (1 Ton)

At Dongqi Crane, every project is an opportunity to engineer precision and reliability. In 2025, we delivered a custom-engineered BX series wall-mounted slewing jib crane to a steel fabrication facility in Cyprus. Designed to handle a specific workload without disrupting the workshop layout, this installation has recently been documented with on-site photographs, and we are proud to share the positive feedback from our client.

This case study explores how this 1-ton solution is making a tangible difference and how the BX series is applied across global markets.

The Challenge: Optimizing Workflow in a Congested Environment

Steel fabrication shops are dynamic environments. Heavy materials need to be moved constantly, but floor space is always at a premium. Our client, a steel structure manufacturing factory in Cyprus, needed a dedicated lifting solution for a specific assembly and welding zone.

Using a forklift for every lift was inefficient, and a full-sized overhead crane was unnecessary for a localized workstation. They required a tool that offered:

• Workstation-Specific Lifting: Precise handling of steel components up to 1 ton.
• Maximum Coverage: A long reach to cover multiple material racks and workbenches.
• Zero Floor Obstruction: Complete freedom for foot traffic and mobile equipment on the ground.

The Dongqi Solution: Precision Engineered for Extended Reach

Our solution was a custom-fabricated BX Wall-Mounted Jib Crane, configured to meet the client’s exact spatial requirements:

• Model: BX Series Wall-Mounted Cantilever Jib Crane
• Capacity: 1 Ton
• Boom Length: 8.8 Meters
• Lifting Height: 4 Meters
• Slewing Angle: 180° (Typical for tie-rod designed cranes)
• Power Supply: 400V / 50Hz / 3 Phase
• Design Features: High-strength main beam with tie-rod support to handle the long 8.8m span without excessive deflection.

This configuration ensures that a single operator can effortlessly handle components across a wide semi-circular area, all from a secure wall-mounted point.

Client Feedback: Real Results on the Factory Floor

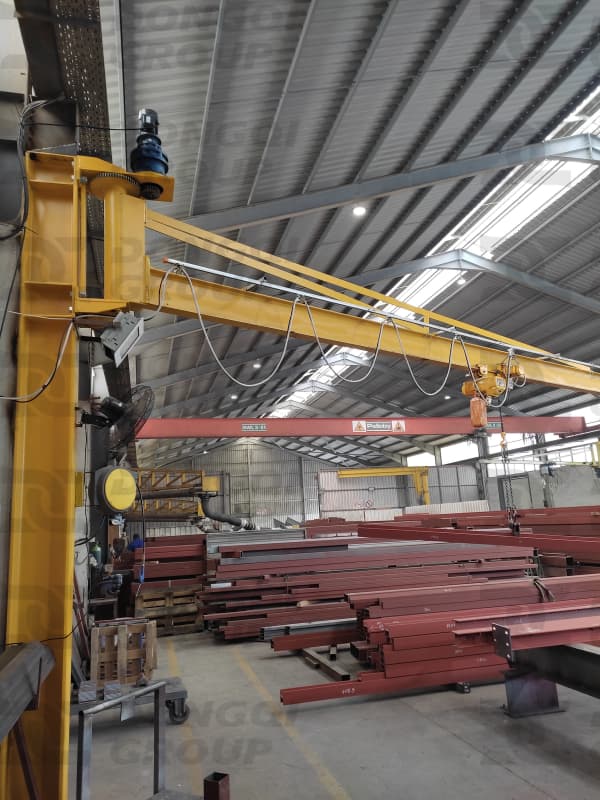

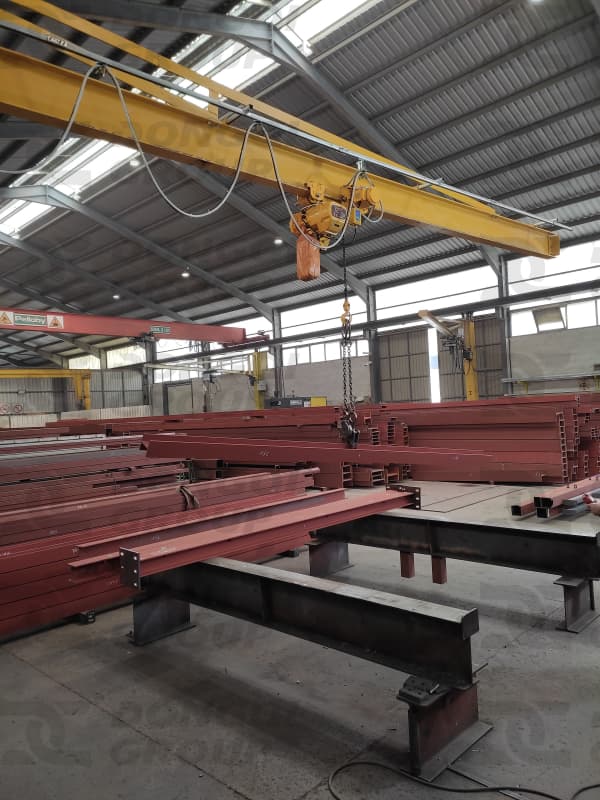

We recently received photographs of the crane in full operation, along with valuable feedback from the client’s team. Their insights highlight the practical benefits of the installation:

“We were a bit skeptical about mounting an 8.8-meter arm on the wall, wondering if it would handle the daily punishment of a steel workshop. The Dongqi BX crane has proven itself immediately.

The 8.8-meter boom gives us incredible coverage. We can now serve two fabrication benches and the material storage rack with just one crane. The movement is smooth, and the 4-meter lift height is perfect for our stacking needs.

Most importantly, the floor is completely clear. Our welders and fitters can move safely around the area without tripping over foundations or avoiding pillars. It has made our designated workstation significantly safer and more productive. The 400V integration was plug-and-play, which minimized downtime during installation.” — Workshop Manager, Cyprus Steel Fabrication Plant

Key Product Features & Benefits

The success of this installation is rooted in the core design philosophy of the BX series, which offers distinct advantages for modern industrial facilities:

1. Space-Saving Design
As a wall-mounted unit, the BX series requires no foundation, floor space, or supporting pillar. This feature is critical in busy workshops where space equals money. It allows workshops to utilize the upper wall area for lifting while keeping the ground plane completely free for other operations.

2. Extended Working Radius
The 8.8-meter boom is a standout feature. It allows the crane to service a massive area, reducing the need for multiple lifting devices and ensuring that materials can be passed from storage to workstation with a single, smooth motion.

3. Superior Structural Integrity
Designed for the rigor of steel fabrication, the BX series utilizes a robust tie-rod structure. This design minimizes deflection (typically L/300) even under full load, ensuring precise positioning and long-term durability, even with the extended boom length.

4. Customizable Configurations
The ability to customize lifting height, boom length, and voltage (like the 400V/50Hz/3P requirement for Cyprus) ensures that the crane integrates seamlessly into the client’s existing electrical infrastructure and spatial layout.

Applications Across Global Markets

While this case study focuses on a steel fabrication plant in Cyprus, the versatility of the BX series wall-mounted jib crane makes it a valuable asset across a diverse range of industries worldwide.

• In Warehouse & Logistics (Europe & Middle East):
  Warehouses use these cranes at loading bays to handle heavy parcels or to service specific shelving units. The wall-mounted design keeps aisles clear for pallet jacks and forklifts, improving the overall logistics flow.
• In Automotive Manufacturing (Asia & North America):
  Automotive parts suppliers use smaller-capacity BX cranes for precisely positioning components onto assembly lines or for die changes in press shops. The 180° rotation allows for efficient hand-off between operators.
• In General Engineering & Maintenance (Africa & South America):
  Maintenance workshops in mining or heavy equipment sectors utilize these jib cranes for disassembling and reassembling components like pumps, motors, and gearboxes. The ability to mount them on columns or walls saves valuable repair bay space.
• In Food & Beverage Production (Global):
  In hygienic environments, specialized versions of jib cranes are used to lift mixing bowls or open large vats. The lack of floor-mounted structures makes it easier to maintain strict cleaning protocols and keep production floors spotless.

Conclusion

The successful deployment of the Dongqi BX wall-mounted jib crane in Cyprus is a testament to our ability to provide targeted, space-efficient solutions for heavy industries. By combining a client-centric approach with robust engineering, we delivered a tool that enhances safety, reclaims valuable floor space, and streamlines the steel fabrication process.

From Cyprus to the rest of the world, Dongqi Crane continues to provide the lifting power that industries rely on.

---
