RMG Crane
Reliable Rail-Mounted Gantry (RMG) Crane Supplier in Pakistan
Dongqi crane is a reliable supplier of rail-mounted gantry (RMG) cranes in Pakistan, providing high-quality and efficient lifting solutions for various industrial applications.
RMG cranes are a type of gantry crane that is mounted on rails, allowing it to traverse along the track and providing flexibility and accuracy in lifting operations. They are often used in manufacturing, logistics, and other industries where precise and reliable lifting is essential.
Dongqi crane offers a range of RMG cranes that are designed for different lifting capacities and configurations. The company’s RMG cranes are built with high-quality components and materials to ensure durability and performance. They feature a robust structure and advanced lifting systems that provide precise control and handling of loads.
RMG cranes from Dongqi crane are suitable for various applications, including manufacturing lines, warehouses, and distribution centers. They can handle a wide range of lifting tasks, such as loading, unloading, stacking, and more, with minimal downtime and reduced operator effort.
In addition to the RMG cranes, Dongqi crane also provides related accessories and components, such as spreader bars, hooks, and lifting slings. These accessories are designed to complement the RMG cranes and ensure they perform optimally.
Dongqi crane’s experienced team of engineers and technicians is committed to providing quality products and excellent customer service. They can assist customers in selecting the right RMG crane for their specific needs and ensure it is suitable for the application. Installation, commissioning, and after-sales service are also provided to ensure the system performs as expected and is reliable.
If you are looking for a reliable supplier of RMG cranes in Pakistan, Dongqi crane is a great choice. The company offers a range of standard and custom-made RMG cranes, as well as related accessories and components, to meet different lifting requirements. With its experienced team and commitment to quality, Dongqi crane is a trusted partner for all your lifting equipment needs.
RMG crane working 3D video

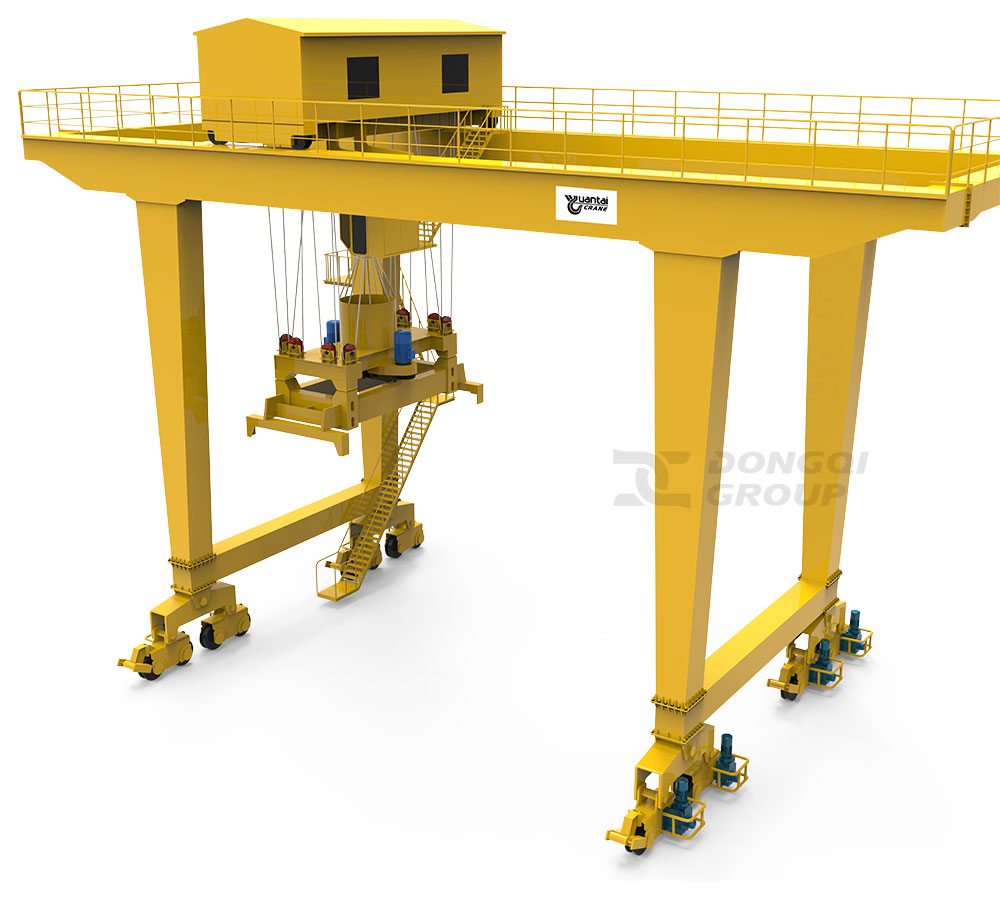

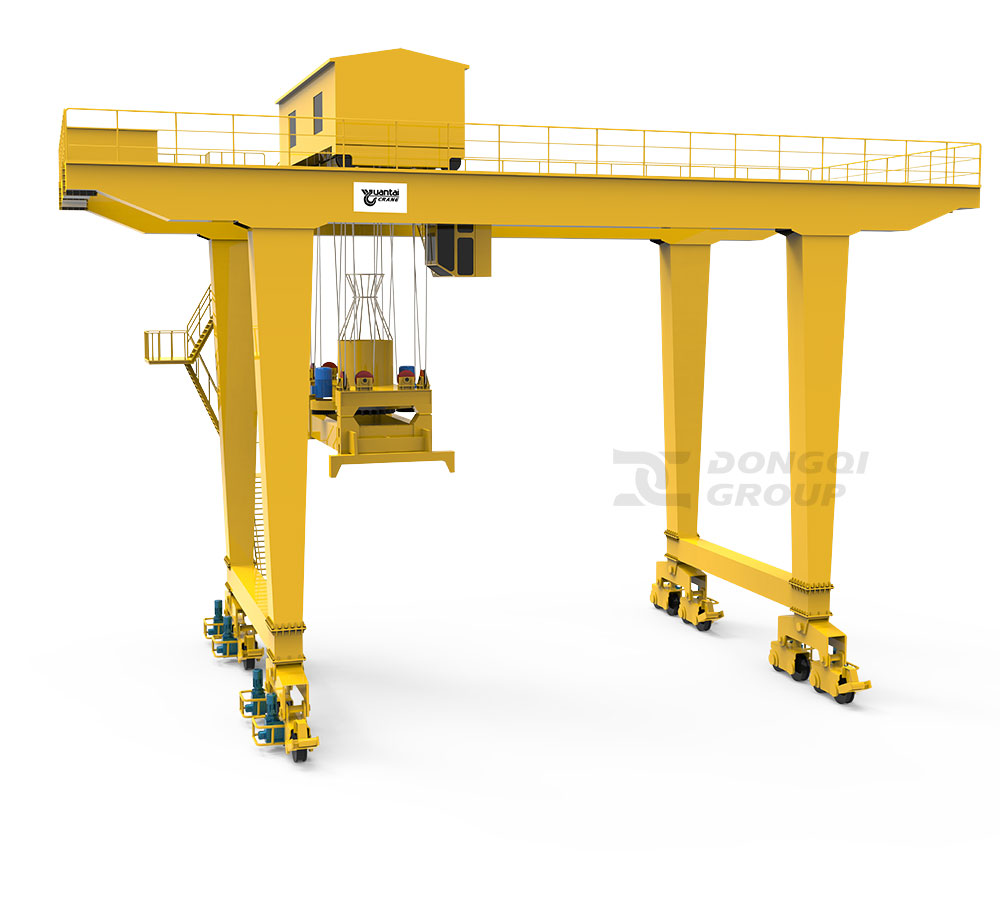

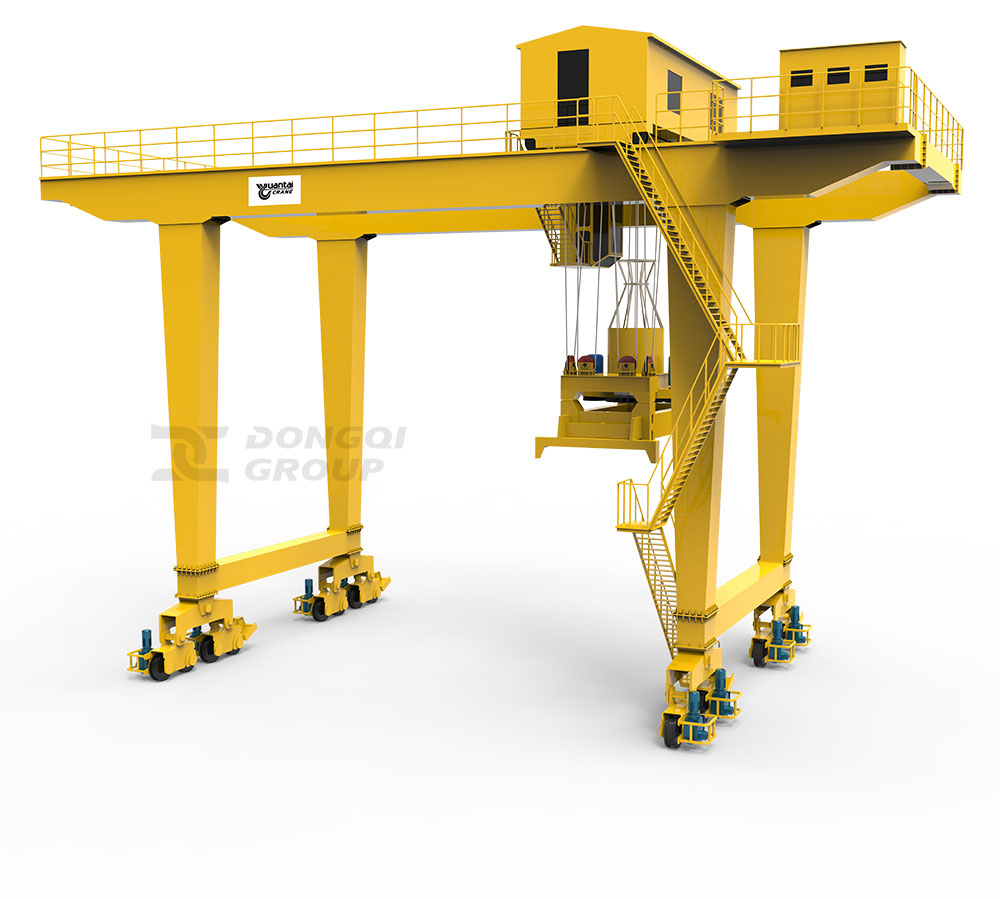

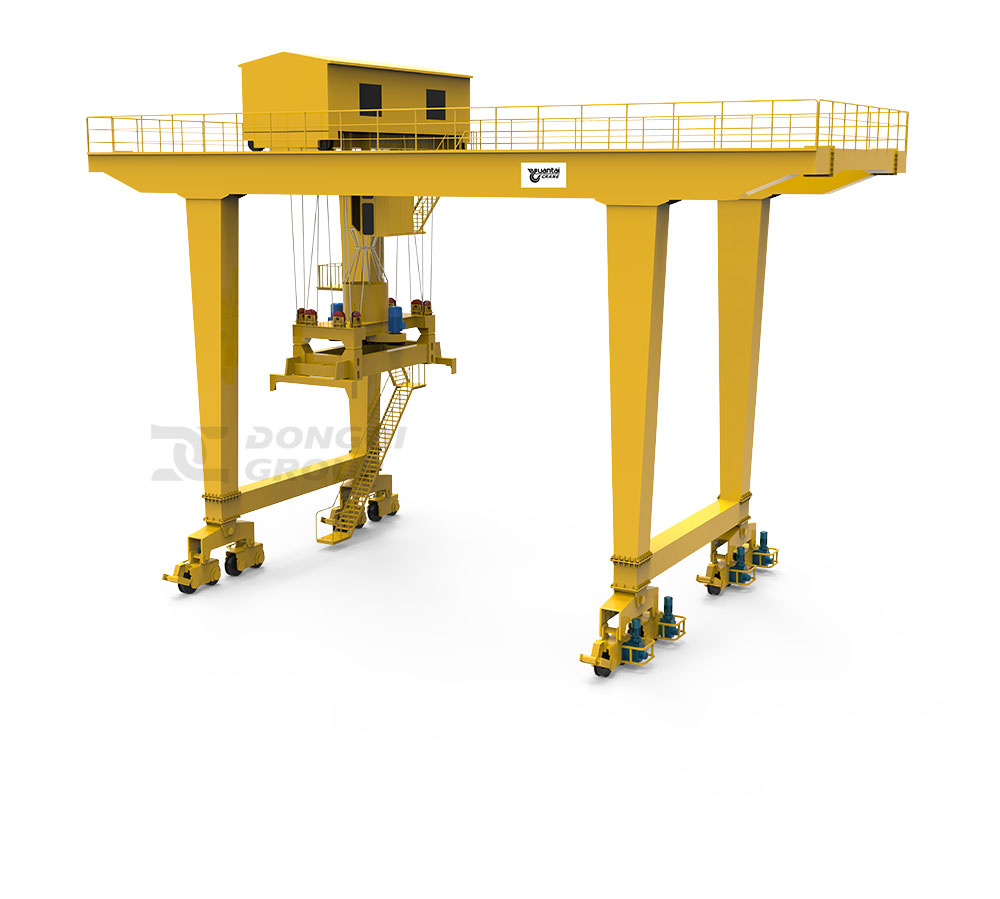

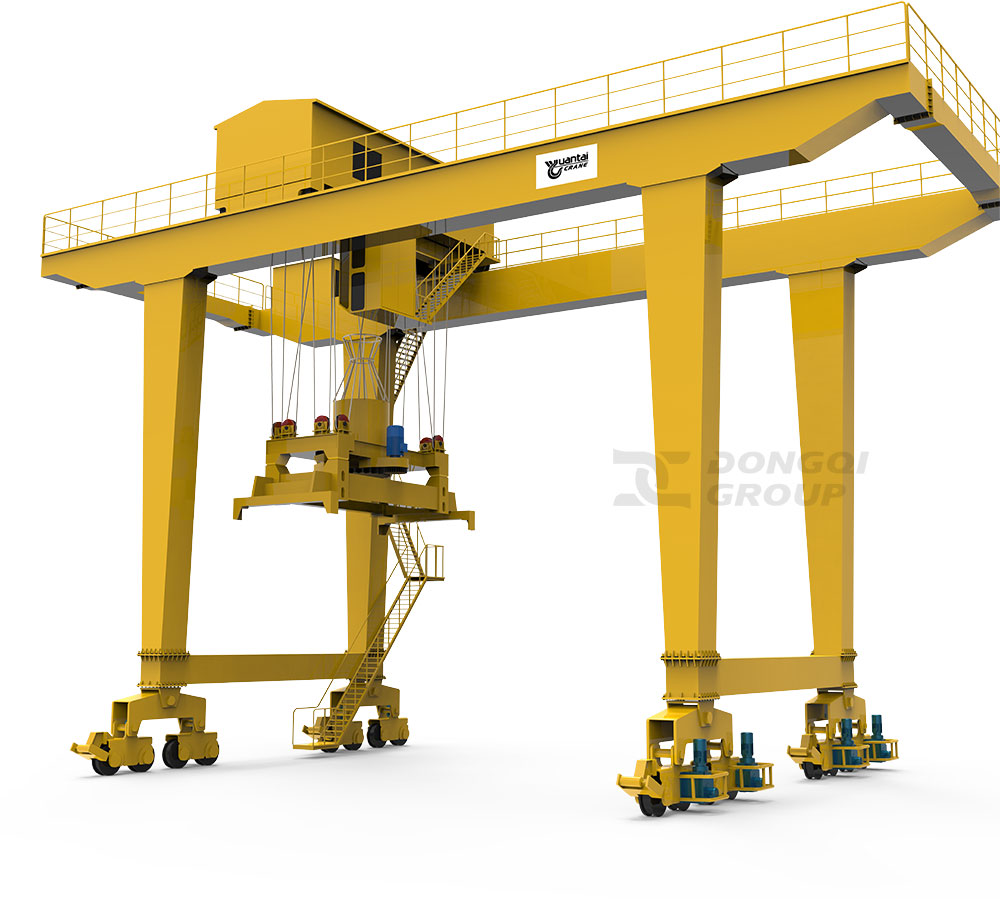

The rail type container gantry crane is a specialized gantry crane with a lifting capacity of 50 tons (40.5 tons under the lifting appliance), working levels of A6~A7, 40 tons (35 tons under the lifting appliance), and working levels of A5~A6. It is mainly used for container loading, unloading, handling, and stacking work in railway, port, dock container transfer yards, and large container storage and transportation yards. It is composed of the main beam, rigid and flexible door legs, running trolley, lifting mechanism, rotating mechanism (optional: lifting tool rotation, upper trolley rotation, hook type), crane running mechanism, electrical system, operating cab, etc. 20 ‘, 40, 45’, and 40.5t electric telescopic lifting appliances can be selected for container gantry cranes, with intelligent control and remote control; Multiple anti swing devices and methods ensure safety and accuracy during the lifting process, improving work efficiency; The design, manufacturing, and testing of the crane comply with the provisions of GBT 19683-2005 “Rail mounted Container Gantry Cranes”.
According to the yard operation process, extending the cantilever in the direction of a single or double door leg becomes a single or double cantilever model, and not extending becomes a non cantilever model. Different structural forms of non cantilever, single cantilever, and double cantilever are determined based on the site, container storage and transportation process, and loading and unloading vehicles (container trucks or railway vehicles).

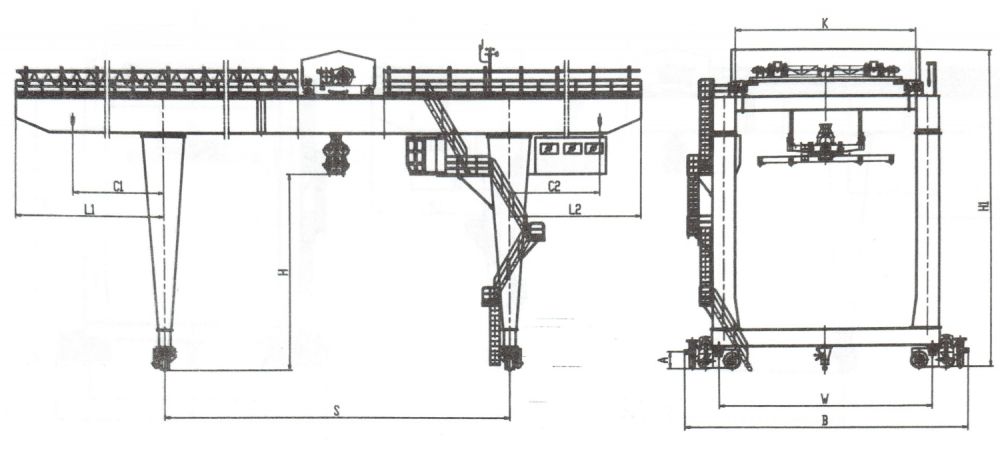

Outline Dimensional Drawing of 50 Ton Rail Container Gantry Crane
50-ton rail-mounted container gantry crane technical parameters and main dimensions data sheet
| Lifting capacity | t | 50 (40.5t under spreader) | |||
| Span(S) | mm | 26000 | 30000 | 35000 | |
| Lifting height(H) | 10000 | ||||
| work system | A6-A7 | ||||
| speed | Rise | m/min | Fully loaded 1.2-12 Unloaded 1.2-18 | ||
| Lower trolley operation | Fully loaded 4-40 Unloaded 4-60 | ||||
| Upper trolley operation | 1.5r/min | ||||
| Cart running | Fully loaded 4-40 Unloaded 4-60 | ||||
| electric motor | Rise | KW | 2x55KW | ||
| Car running | 2×7.5KW | ||||
| Cart operation | 4x11KW | 4x15KW | |||
| Maximum wheel pressure | KN | 348 | 370 | 395 | |
| Number of wheels | 8 | ||||
| Recommended rails | QU80-QU100 | ||||
| power supply | Three-phase AC 50HZ 380V | ||||
| Main dimensions (mm) | K | 8100 | |||
| W | 9600 | ||||
| B | 12600 | ||||
| A | 950 | ||||
| H | 10000 | ||||
| H1 | 17000 | ||||
| L1 | 8500 | 10500 | 12000 | ||
| C1 | 5500 | 7500 | 9000 | ||
| L2 | 8500 | 10500 | 12000 | ||
| C2 | 5500 | 7500 | 9000 | ||
