ZD1, ZDY1, ZDS1, ZDM1 conical rotor three-phase asynchronous motors are used for CD1 and MD1 electric hoists. ZD1, ZDS1, ZDM are used for lifting, and ZDY is used for traveling. The protection level of the motor housing is IP44. (IP54 can be produced according to user needs). This series of motors are closed and self-fan cooled, with a truncated cone rotor and a squirrel cage structure. The motor itself has a brake that can brake reliably and quickly. The motor has a high starting torque, so it can also be used in places with the above requirements in industries such as machine tools, textiles, electronics and general machinery.

Motor Description

• Product name: three-phase asynchronous motor
• Alias: lifting motor/motor
• Category: conical rotor
• Product origin: Nanjing, Jiangsu/Xinxiang, Henan
• Non-standard customization: accept non-standard customization
• Power form: three-phase AC 380V-50Hz
• Is it in stock: most of them are in stock
• Production cycle: 7~10 days
• Supply range: nationwide
• Delivery method: self-pickup/freight agency
• Is it installed: installation is charged separately
• After-sales method: one-year warranty

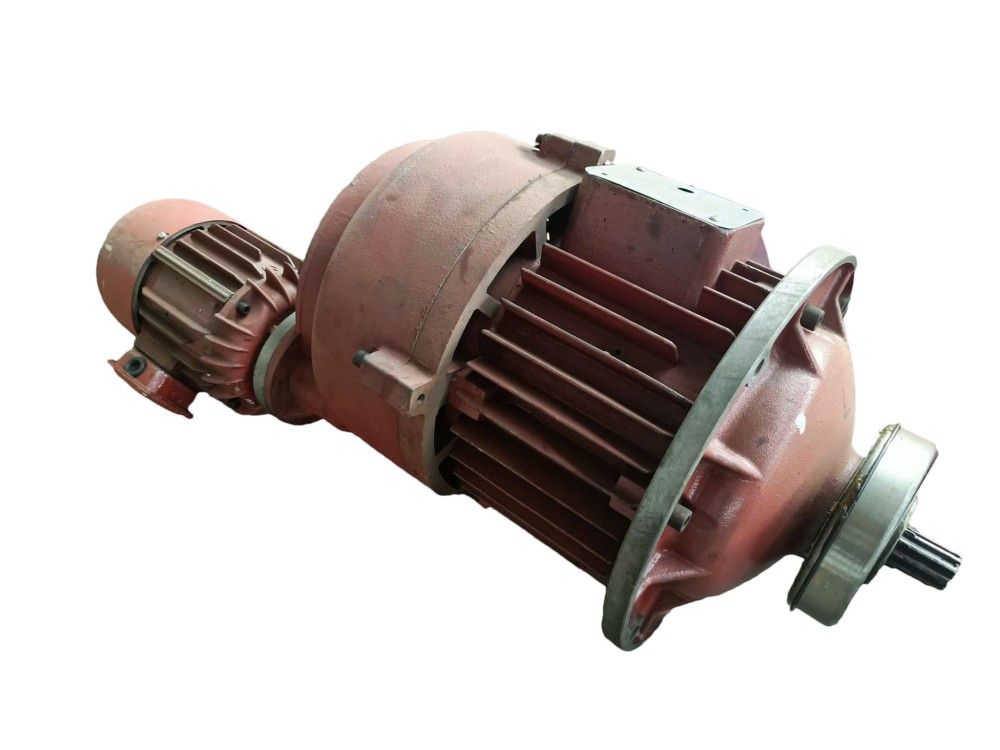

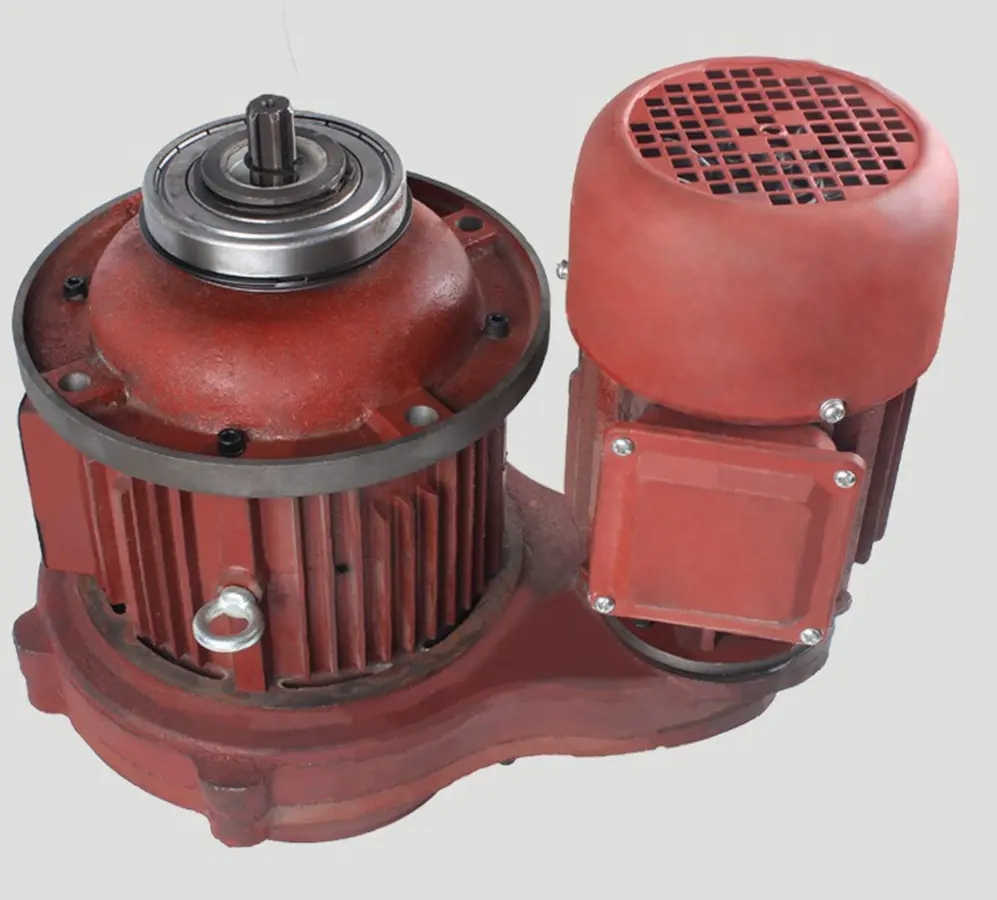

Electric Motor Pictures

Motor parameters

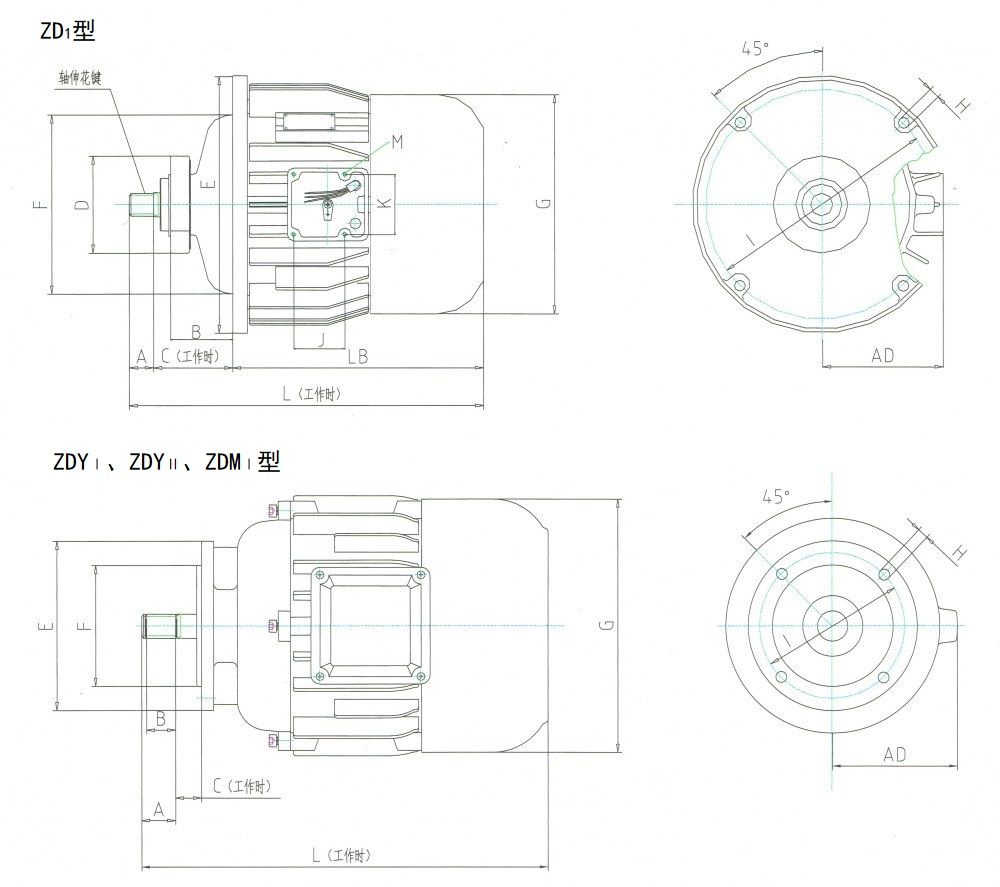

ZD series conical rotor three-phase asynchronous motor dimensions (excluding 18.5~24KW)

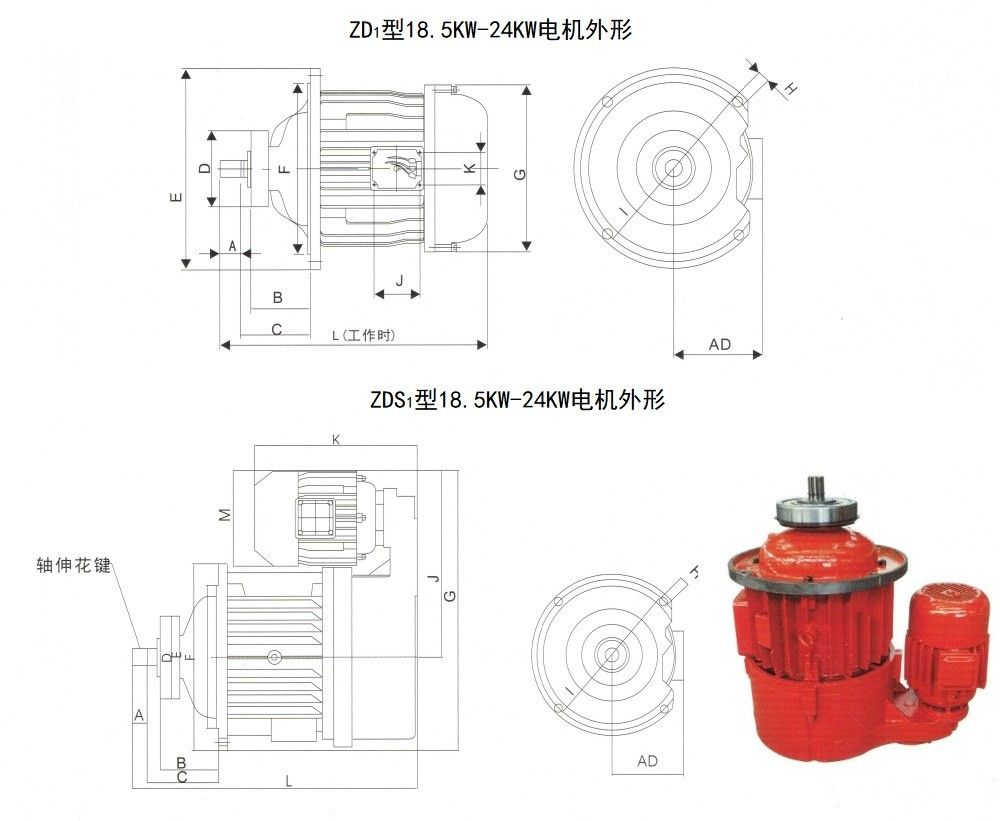

ZD1, ZDS1 18.5KW~24KW motor dimensions

ZD series conical rotor three-phase asynchronous motor dimensions

			Size code
Model	Power(Kw)	Shaft spline	A	B	C	D	E	F	G	H	1	J	K	L	M	AD
ZDY112-4	0.4	4D-15d9x12x4c11	25	22	15		Φ110	Φ75	Φ153	Φ7	Φ90			273	M5	116
ZDM112-4
ZD121-4	0.8	6D-20d9x16x4c11	24	61	71	Φ110	Φ220	Φ177	Φ215	Φ9	Φ194	63	74	324	M5	110
ZDY121-4			28	24	20		Φ140	Φ100	Φ215	Φ9	Φ120			332		160
ZDY121-4		6D-25d9x22x6c11	34	30	14		Φ220	Φ180	Φ215	Φ11	Φ200			332
ZDM121-4		6D-20d9x16x4c11	28	24	20		Φ140	Φ100	Φ215	Φ9	Φ120			332
ZD122-4	1.5	6D-20d9x16x4c1	24	61	71	Φ110	Φ235	Φ179	Φ228	Φ13.5	Φ205	63	74	362	M5	114
ZDY122-4		6D-25d9x22x6c11	34	30	14		Φ220	Φ180	Φ228	Φ11	Φ200			371		160
ZDM122-4			34	30	14		Φ140	Φ100	Φ228	Φ11	Φ120			371
ZDM123-4	2.2	6D-25d9x22x6c11	34	30	14		Φ140	Φ100	Φ228	Φ11	Φ120			371
ZD131-4	3.0	6D-28d9x23x6c11	30	81	107	Φ120	Φ290	Φ220	Φ286	Φ13.5	Φ260	63	74	425	M5	143
																181
ZDM131-4			39	30	17		Φ220	Φ180	Φ286	Φ15	Φ200
ZDY131-4			50		6.5		Φ248	Φ180	Φ300	Φ15	Φ215			424.5		188
ZD132-4	4.5	6D-28d9x23x6c11	30	77	98	Φ120	Φ320	Φ223	Φ300	Φ13.5	Φ286	63	74	438	M5	150
																188
ZDY132-4			50		6.5		Φ248	Φ180	Φ300	Φ15	Φ215			448.5
ZD141-4	7.5	10D-35d9x28x4c11	35	97	120	Φ160	Φ380	Φ260	Φ343	Φ17.5	Φ340	63	74	510	M5	170
ZD151-4	13	10D-40d9x32x5c11	38	137	172	Φ200	Φ455	Φ300	Φ440	Φ17.5	Φ415	120	85	634	M6	210
ZD152-4	18.5	10D-45d9x36x5c11	55	157	187	Φ200	Φ455	Φ300	Φ440	Φ17.5	Φ415	120	85	711	M6	245
							Φ530	Φ450			Φ490
ZDX62-4	24	10D-52d9x42x6c11	55	173	198	Φ200	Φ550	Φ460	Φ520	Φ17.5	Φ500	80	118	740	M6	240
