Technical parameters of QB double beam explosion-proof bridge crane with 5 tons/10 tons
QB type double beam explosion-proof bridge crane is a type of double beam crane used in situations with explosion-proof requirements, suitable for hazardous areas of Zone 1 or Zone 2. 5 tons and 10 tons are two commonly used tonnage. When selecting QB explosion-proof bridge crane, users should indicate the technical requirements such as working system, maximum and minimum temperature of working environment, and type of power supply. The editor will introduce the technical parameters of a 5-ton and 10 ton double beam explosion-proof bridge crane.

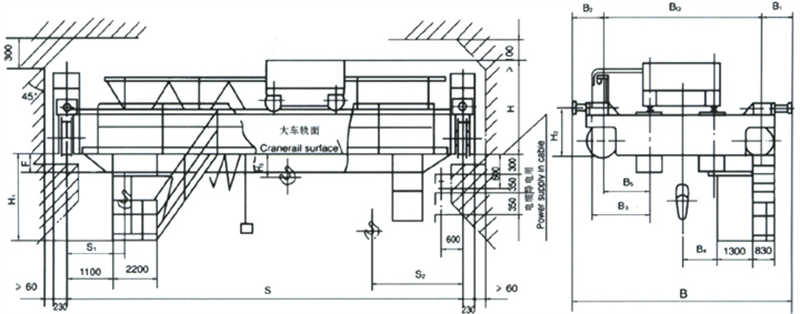

Structural diagram of a 5-ton and 10 ton double beam explosion-proof bridge crane
Technical parameters of 5-ton and 10 ton double beam explosion-proof bridge crane
| Lifting Weight | t | 5-ton double beam explosion-proof bridge crane | 10 ton double beam explosion proof bridge crane | ||||||||||||||||
| Span | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | ||
| Max Lifting Height | 16 | 16 | |||||||||||||||||
| Working class | A3 | ||||||||||||||||||
| Speed | Lift | m/min | 2.04 | ||||||||||||||||
| handcar travel | 18.24 | 18 | |||||||||||||||||
| crat travel | 29.5 | 29.4 | 29.5 | 29.4 | 35 | ||||||||||||||
| Motor total power | kw | 9.3 | 12.3 | 10.8 | 13.8 | 13.8 | |||||||||||||
| Main Size（mm） | BQ | 3400 | 3550 | 5000 | 4050 | 5000 | |||||||||||||
| B1 | 1140(500) | 550(500) | 1140(500) | 1210(570) | 780(500) | ||||||||||||||
| B2 | 650 | 550 | 650 | 720 | 550 | ||||||||||||||
| B3 | 1535 | 1585 | 1485 | 1535 | 1635 | 1560 | 1610 | 1510 | 1585 | ||||||||||
| B4 | 540 | 545 | 550 | 595 | 620 | 645 | 670 | 865 | 870 | 875 | 920 | 945 | 970 | ||||||
| B5 | 1356 | 1381 | 1306 | 1331 | 1356 | 1431 | 1456 | 1381 | 1406 | 1331 | 1356 | 1381 | 1406 | ||||||
| S1 | 900 | 1050 | |||||||||||||||||
| S2 | 1250 | 1300 | |||||||||||||||||
| F | -24 | 126 | 226 | 376 | 526 | 676 | 826 | 976 | -24 | 126 | 226 | 376 | 526 | 628 | 778 | 928 | |||
| H | 1764 | 2756 | 1926 | ||||||||||||||||
| H1 | 2526 | 2546 | 2596 | 2756 | 2906 | 3056 | 3206 | 3356 | 2526 | 2546 | 2596 | 2756 | 2906 | 3008 | 3158 | 3308 | |||
| H2 | 735+H0 | 735+H0 | 785+H0 | ||||||||||||||||
| H3 | 31 | 561.5 | 511.5 | ||||||||||||||||
| Weight | Handcart | t | 1.8 | 3.4 | |||||||||||||||
| Total Weight | Open | 11.8 | 13.6 | 15.3 | 18.1 | 20.5 | 24.9 | 28.1 | 31.0 | 14.0 | 15.7 | 18.4 | 20.2 | 22.8 | 27.4 | 30.7 | 33.8 | ||
| Close | 12.2 | 14.0 | 56.7 | 18.5 | 20.9 | 25.3 | 28.4 | 31.4 | 14.4 | 16.1 | 18.8 | 20.6 | 23.2 | 27.8 | 31.1 | 34.2 | |||
| ground | 10.9 | 12.8 | 14.4 | 17.2 | 19.1 | 24.0 | 27.1 | 30.1 | 13.5 | 14.9 | 17.5 | 19.2 | 21.9 | 26.3 | 29.3 | 32.3 | |||
| Max.Wheel Pressure | kN | 79 | 84 | 90 | 96 | 103 | 115 | 123 | 130 | 107 | 113 | 121 | 127 | 134 | 148 | 156 | 163 | ||
| Steel track | 38kg/m | 43kg/m | |||||||||||||||||
| Power Supply | 3-Phase A.C 50Hz 380V | ||||||||||||||||||
