LDY type metallurgical single beam crane is mainly used to lift molten metal in metallurgical and casting sites, and its supporting lifting mechanism is YH type metallurgical electric hoist, with lifting capacity ≤ 10t. Our small editor will share the technical parameters of 10 ton LDY type single beam metallurgical crane for your reference.

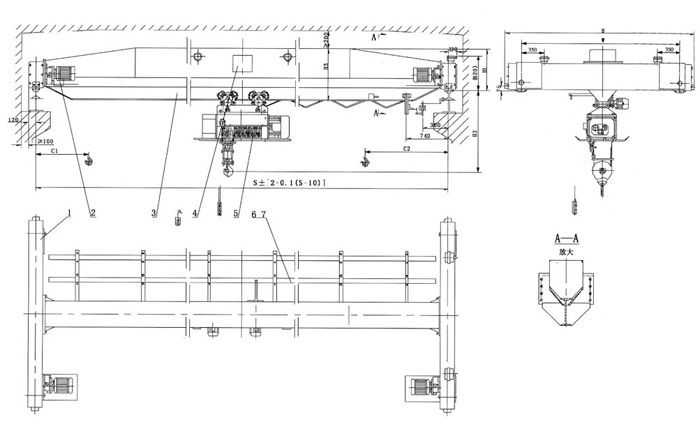

Structural drawing of metallurgical single beam crane

In the figure: 1. End beam device 2. Nameplate 3. Main beam 4. Tonnage plate 5. YH electric hoist 6. Power transmission device

Technical parameters of metallurgical single beam crane

Crane operating structure	Running speed (m/min)		twenty	thirty
	speed ratio		fifty-eight point nine five	thirty-nine point four two
	Motor	model	Conical cage
		Power (kw)	0.8×2、1.5×2
		Speed (r/min)	one thousand three hundred and eighty
Lifting structure (electric hoist) And operation structure	Electric hoist type		YH
	Lifting speed (m/min)		8(7)
	Lifting height H (m)		9、12、15、18、20
	Movement speed (m/min)		twenty
	Motor		Conical cage
working system			Intermediate JE=20%
Power Supply			380V  50HZ
Wheel diameter			270   400
Track surface width			37-70

Parameter table of 10t single beam metallurgical crane

吨位(t)	跨度(m)	整车总量(t)地操	最大轮压(kN)	最小轮压(kN)	踏面至主梁顶H1	踏面至钩中心H2	主梁总高H3	端梁轮距W	端梁总长B	吊钩左极限C1	吊钩有极限C2
10	7.5	3.55	50.8	6.5	820	1780	1000	2000	2500	15001	2100
	8	3.63	51.7	6.6
	8.5	3.72	52.6	6.8
	9	3.81	53.4	7.0
	9.5	3.90	54.1	7.2
	10	3.99	54.7	7.4
	10.5	4.07	55.4	7.6
	11	4.16	56.0	7.7
	11.5	4.39	56.9	8.3		1825	1100
	12	4.48	57.4	8.5
	12.5	4.58	57.9	8.7
	13	4.67	58.4	8.9
	13.5	4.76	58.9	9.1
	14	4.86	59.3	9.4
	14.5	5.15	60.3	10.1		1865	1140	2500	3000
	15	5.24	60.7	10.3
	15.5	5.34	61.1	10.5
	16	5.44	61.6	108
	16.5	5.54	62.0	11.0
	17	5.64	62.4	11.2
	17.5	6.44	64.5	13.2	925	1925	1250
	18	6.55	64.9	13.5
	18.5	6.67	65.3	13.8
	19	6.79	65.8	14.1
	19.5	6.91	66.2	14.4
	20	8.31	69.8	17.9	1100	1850	1350	3000	3500
	20.5	8.46	70.3	18.2
	21	8.61	70.7	18.6
	22.5	8.76	71.2	18.9
