QC type electromagnetic double-girder bridge crane is a double-girder crane that uses electromagnetic suction cups as lifting slings. The electromagnetic suction cups are removable, and the lifting capacity includes the self-weight of the electromagnetic disk. Commonly used tonnages are 5 tons, 10 tons, and 16 tons. The span is generally 10.5 to 31.5 meters. Working level is A6.

QC type electromagnetic bridge crane is suitable for heavy loading, unloading and transportation of magnetic ferrous metal products and materials (such as steel ingots, steel sections, pig iron blocks) in metallurgical factories in indoor or open-air fixed rooms. It is also commonly used in machinery factory warehouses. Carry steel materials, iron blocks, scrap iron, scrap steel, scraps and other materials. The editor of our factory will introduce to you the main technical parameters of 5-ton, 10-ton and 16-ton electromagnetic bridge cranes.

Parameters of 5-ton and 10-ton double-girder electromagnetic bridge cranes:

Lifting capacity			t	5 (including the self-weight of the electromagnet)								10 (including the self-weight of the electromagnet)
span			m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Working level				A6
Maximum lifting height			m	22								22
speed	Rise	electromagnetic	m/min	14.8								16.8
		Vice hook
	Car running			43.5								44.2
	Cart operation			93				94				86.5
electric motor	Rise	electromagnetic	kW	YZR200L-6/22								YZR280S-8/45
		Vice hook
	Car running			YZR132M1-6/2.2								YZR132M2-6/4
	Cart operation			YZR160M1-6/2×5.5				YZR160M2-6/7.5								YZR160M2-6/7.5

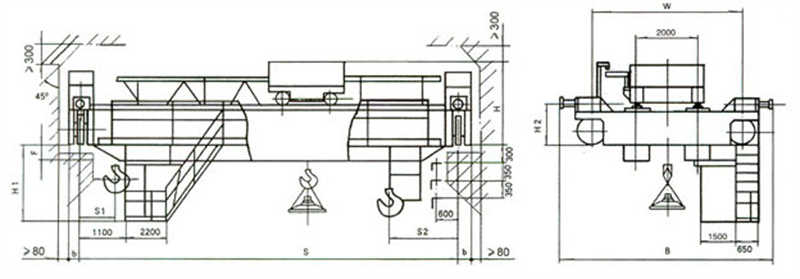

Main dimensions			B	5700				6200				5860				6260
			IN	4100				4600				4200				4600
			b	244								274
			LX	2000								2000
			H	1743	1746	1749	1754	1757	1760	1763	1766	2058	2061	2064	2067	2070	2073	2076	2079
			H2	730								845
			S1	1130								1169
			S2	1485								1581
			F	26	176	246	326	476	676	776	926	28	148	278	428	578	728	828	918
weight	car		t	4.45								5.54
	total weight			16.6	18.3	20.4	22.6	25.5	28.6	31.4	34.5	21.6	23.7	26.2	28.9	31.3	34.6	38.1	41.2
Maximum wheel pressure			KN	84	89	95	101	110	124	127	136	145	150	162	170	181	190	196	205
Electromagnetic chuck	model			MW1-6				MW1-16				MW1-16
	absorption		kg	4540				3140				8140
	self-respect			640				1860				1860
	diameter		mm	776				1180				1180
Recommended rails				38kg/m   50kg/m								43kg/m   50kg/m
power supply				Three-phase AC 3-Phase 50HZ 380V

Technical parameters of 16-ton double-girder electromagnetic bridge crane:

Lifting capacity			t	16 (including the self-weight of the electromagnet)
span			m	10.5	13.5	16.5	19.5	22.5	25.5	28.5	31.5
Working level				A6
Maximum lifting height			m	16
speed	Rise	electromagnetic	m/min	16.8
		Vice hook
	Car running			44.2
	Cart operation			86.5				86.9
electric motor	Rise	electromagnetic	kW	YZR280M-8/55
		Vice hook
	Car running			YZR132M1-6/4
	Cart operation			YZR160M2-6/7.5				YZR160L-6/2×11
Main dimensions			B	5860				6260
			IN	4200				4600
			b	274
			LX	2000
			H	2060	2063	2066	2069	2072	2075	2078	2081
			H2	845
			S1	1169
			S2	1581
			F	28	148	278	428	578	728	828	918
weight	car		t	6.1
	total weight			28.8	31.0	34.3	37.4	40.5	45.2	49.0	53.4
Maximum wheel pressure			KN	249	265	278	291	310	318	328	343
Electromagnetic chuck	model			MW1-16
	absorption		kg	14140
	self-respect			1860
	diameter		mm	1180
Recommended rails				38kg/m   50kg/m   QU80
power supply				Three-phase AC 3-Phase 50HZ 380V
