Technical parameters of 32/5t double beam electromagnetic bridge crane
32/5t double beam electromagnetic bridge crane refers to the electromagnetic bridge crane with a lifting capacity of 32/5t. The double beam electromagnetic crane is a double girder structure, which ensures the smooth operation of the crane. The 32/5t electromagnetic bridge crane has two sets of lifting mechanisms, which can hook the electromagnetic sucker on the main hook or vice hook. The rated lifting capacity of the crane includes the dead weight of the electromagnetic chuck. The technical parameters of the 32/5t double beam electromagnetic bridge crane are shared by our editor.

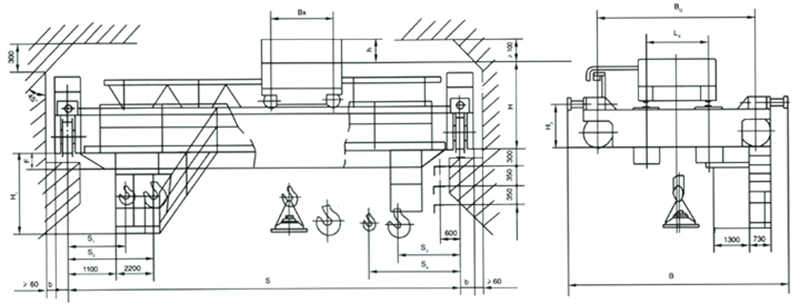

Structural Drawing of 32/5t Electromagnetic Bridge Crane
Technical parameters of 32/5t double beam electromagnetic bridge crane
| Lifting Weight | t | 32/5 Main Magnet | 32/5 Secondary Magnet | ||||||||||||||
| Span m | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |||
| Max Lifting Height | m | 16/20 | 16/18 | ||||||||||||||
| Working class | A6 | ||||||||||||||||
| Speed | Lift | Main hook | m/min | 12.2 | 9.5 | ||||||||||||
| Vice hook | 19.5 | 20 | |||||||||||||||
| Trolley travel | 42.8 | ||||||||||||||||
| Crane travel | 101.4 | 101.8 | 85.8 | 101.4 | 101.8 | 85.8 | |||||||||||
| Motor | Lift | Main hook | Type/ kw | YZR315S-8/75 | YZR280M-8/55 | ||||||||||||
| Vice hook | YZR180L-6Z/17 | YZR200L-6/22 | |||||||||||||||
| Trolley travel | YZR160M1-6/5.5 | ||||||||||||||||
| Crane travel | YZR160L-6/11×2 | YZR180L-6/11×2 | YZR160L-6/11×2 | YZR180L-8/11×2 | |||||||||||||
| Main Size（mm） | B | 6640 | 6690 | 6990 | 6640 | 6690 | 6990 | ||||||||||
| BQ | 4560 | 4700 | 5000 | 4650 | 4700 | 5000 | |||||||||||
| BX | 3150 | ||||||||||||||||
| b | 260 | 300 | 260 | 300 | |||||||||||||
| LX | 2500 | ||||||||||||||||
| H | 2341 | 2471 | 2341 | 2471 | |||||||||||||
| H1 | 2586 | 2616 | 2646 | 2796 | 2946 | 3096 | 3196 | 2586 | 2616 | 2646 | 2796 | 2946 | 3096 | 3196 | |||
| H2 | 880 | 1010 | 880 | 1010 | |||||||||||||
| S1 | 1250 | ||||||||||||||||
| S2 | 1700 | ||||||||||||||||
| S3 | 2670 | ||||||||||||||||
| S4 | 3120 | ||||||||||||||||
| F | 96 | 246 | 266 | 416 | 566 | 716 | 816 | 96 | 246 | 266 | 416 | 566 | 716 | 816 | |||
| h | 820 | ||||||||||||||||
| Weight | Handcart | t | 11.254 | ||||||||||||||
| Total Weight | 30.1 | 33.2 | 38.3 | 41.6 | 46.8 | 50.3 | 54.9 | 30.1 | 33.2 | 38.3 | 41.5 | 46.8 | 50.3 | 54.9 | |||
| Max.Wheel Pressure | 26.3 | 27.8 | 28.9 | 30.1 | 31.6 | 32.7 | 34 | 26.3 | 27.8 | 28.9 | 30.1 | 31.6 | 32.7 | 34 | |||
| Magnet | Model | MW1-16 | MW1-45 | MW1-6 | MW1-16 | ||||||||||||
| Pulling weight | kg | 16000 | 26450 | 4540 | 3330 | ||||||||||||
| Dead weight | 1670 | 5550 | 460 | 1670 | |||||||||||||
| Diameter | mm | 1180 | 1650 | 776 | 1180 | ||||||||||||
| Steel track | QU70 □90×90 | ||||||||||||||||
| Power Supply | 3-PhaseA.C.50Hz 380V | ||||||||||||||||
