  3. Technical parameters of 10 ton MH single beam gantry crane

Technical parameters of 10 ton MH single beam gantry crane

Posted on by pkcraneyt
10 ton MH single beam gantry crane

The 10 ton MH single beam gantry crane is a commonly used tonnage in outdoor freight yards, suitable for lifting general objects. It has a span of up to 30 meters and can be divided into truss type and box type. There can be overhanging cantilevers on the outer side of the support legs, and the cantilever length is less than one-third of the span. The editor will introduce the technical parameters of the 10 ton MH single beam gantry crane to you.

10 ton MH single beam gantry crane

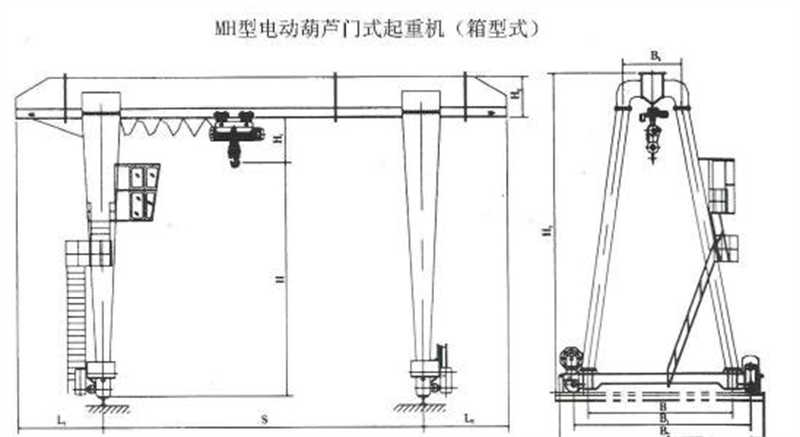

Structural diagram of MH type single beam gantry crane

Structural diagram of MH type single beam gantry crane

Technical parameter table for 10 ton MH single beam gantry crane

Lifting capacityt
Spanm1216202430
Lifting height(m)m6;99
Operating agenciesRunning speedgroundm/min20
driver’s room30   40
Electric Motorground YZR132M2-6/3.7×2YZR160M1-6/6.3×2
driver’s room
reducermmZSC400ZSC600
Wheel diameter φ400φ500
Electric hoistmodelm/minCD1   MD1
Lifting speedm/min7    0.7/7
Running speed 20
Electric MotorRise ZD151-4/13     ZDS11.5/13
operational ZDY21-4/0.8×2
Classification group A5
Recommended rails P38     P43
Power Three-phase AC   380V  50HZ
Crane qualitygroundkg1223815059174232112032700
driver’s roomkg1275015509178732157033200
Maximum wheel pressure kN98/102105/110113/118121/126142/149
SizeL1mm30004000500060007500
L2mm
H1mm1350
H2mm10001100120013001600
H3mm8350/11358450/14508550/115508650/1165012250
Bmm4500/55005500/6500
B1mm5500/65006500/7500
B2mm6000/71007100/8100
B3mm1600
