Parameters of MH type 16t single beam gantry crane
The MH type 16t single beam gantry crane (hereinafter referred to as the 16t single main beam gantry crane) is a small and medium-sized crane with rail operation, which is used in conjunction with the 16t electric hoist gantry crane. It is suitable for a lifting capacity of 1-32 tons, a suitable span of 12-35 meters, and a working environment of -20 ℃ to+40 ℃.
The Mh type 16 ton electric hoist gantry crane is a general-purpose crane, mainly used for loading and unloading or grabbing materials in outdoor places and warehouses. This product has two types: ground control and indoor control.

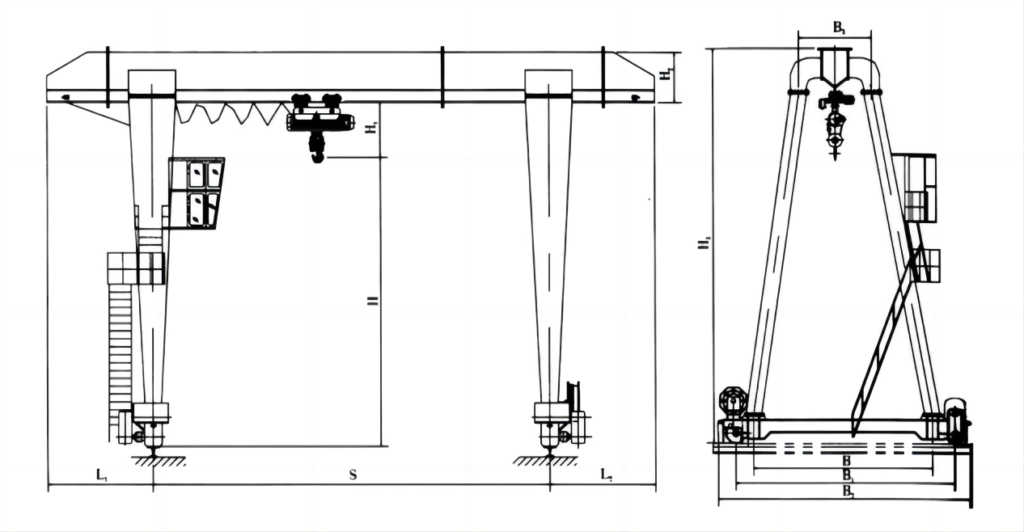

Structural diagram of a 16 ton single beam gantry crane
Parameter size table for 16 ton single beam gantry crane
Cap(t) | 16 ton | ||||||||||
Lifting HeightH(m) | 6 | 9 | |||||||||
Span(m) | 10 | 14 | 18 | 22 | 26 | 10 | 14 | 18 | 22 | 26 | |
Working Duty | A3-A5 | ||||||||||
Lifting Speed | 3.5,3.5/0.35m/min(标准起升速度为3.5m/min) | ||||||||||
Hoist running speed | 20、30m/min(标准葫芦运行速度为20m/min) | ||||||||||
Crane operating speed | 20、30、45m/min(标准起重机运行速度为30m/min) | ||||||||||
Work type | 地控、室控、遥控 | ||||||||||
Powet Supply | 3AC,380V,50HZ | ||||||||||
Chief volume | 19KW | 20.6KW | 27KW | 19KW | 20.6KW | 27KW | |||||
Crane Rail | P24、P38 | ||||||||||
主要尺寸(mm) Main Dimension | H1 | 1900 | |||||||||
H2 | 8982 | 9117 | 9117 | 9492 | 9492 | 11982 | 2117 | 12117 | 12492 | 12492 | |
W | 6130 | 6000 | 6430 | 6130 | 6000 | 6430 | |||||
B | 6880 | 6750 | 7180 | 6880 | 6750 | 7180 | |||||
L1 | 2 | 2.8 | 3.6 | 4.4 | 5.2 | 2 | 2.8 | 3.6 | 4.4 | 5.2 | |
L2 | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | 2.5 | 3.5 | 4.5 | 5.5 | 6.5 | |
最大轮压(KN)Max.Wheel loading | 有悬臂 | 168 | 173 | 184 | 198 | 206 | 176 | 186 | 192 | 209 | 217 |
无悬臂 | 140 | 144 | 148 | 157 | 161 | 148 | 152 | 155 | 166 | 170 | |
起重机总重(t)Total weight | 有悬臂 | 16 | 19 | 21.5 | 26.1 | 28.8 | 18.8 | 22.1 | 13.1 | 16.7 | 19.1 |
无悬臂 | 15.1 | 17.4 | 19.2 | 22.8 | 24.6 | 18 | 20.6 | 22 | 26.3 | 28.2 |
