Parameters of MG type 50t double main beam hook gantry crane
The MG type double beam hook gantry crane belongs to the double main beam universal gantry crane, also known as a 50 ton double beam gantry crane. It consists of a bridge, a crane operating mechanism, a trolley, electrical equipment, and other parts. This 50t gantry crane is designed and manufactured in accordance with GB/T14406-1993 General Portal Cranes. It has a lifting capacity of 50t, a working environment of -20~+40 ℃, and two working levels of A5 and A6.
Technical parameters of 50 ton universal gantry crane
- MG type double beam hook gantry crane specifications: 50T/10T, etc;
- Spans: 13M, 15M, 17M, 18M, 19M, 20M, 22M, 23M, 30M, etc;
- Lifting height: 6M, 9M, 12M, 16M, 24M, 30M, etc;
- Customized cranes can also be designed and customized according to user needs.

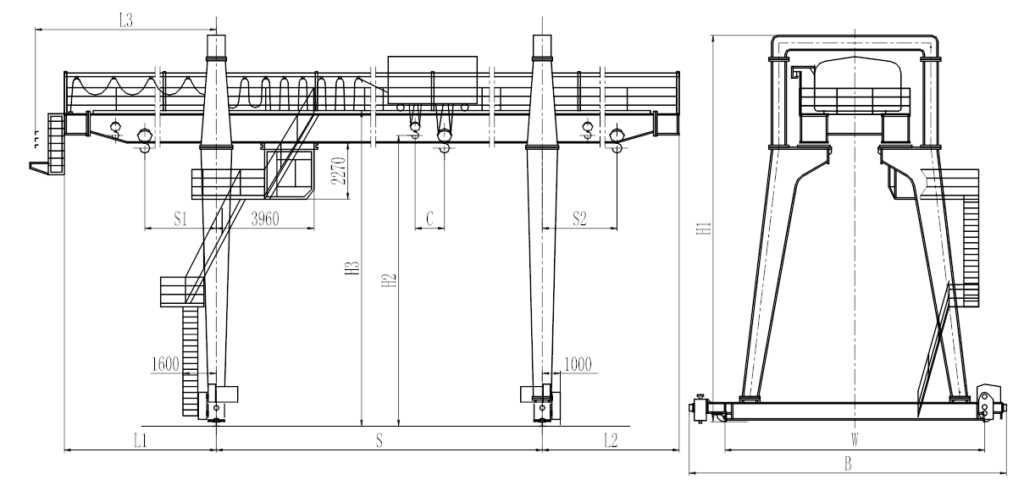

Structural diagram of 50 ton universal gantry crane
Outline dimension table for 50 ton universal gantry crane
起重量Cap(t) | 50/10 | |||||
工作制度Duty | A5 | |||||
跨度Span(m) | 18 | 22 | 26 | 30 | ||
最大起升高度(m) Max.Lifting Height | Main hook | 10 | ||||
Auxiliary hook | 11 | |||||
速度(m/min) Speed | 起升 Hoisting | Main hook | 6.66 | |||
起升 Hoisting | Auxiliary hook | 13.2 | ||||
Trolley running | 38.5 | |||||
Crane running | 37.6 | |||||
电动机型号 Motor | 起升Hoisting | Main hook | YZR315S-10/55 | |||
Auxiliary hook | YZR225M-6/30 | |||||
Trolley running | YZR160M2-6/7.5 | |||||
Crane running | YZR160L-8/4X7.5 | YZR180L-8/4X11 | ||||
主要尺寸 (mm)Main Dimension | S1 | 4900 | 5900 | 6900 | 7900 | |
S2 | 5200 | 6200 | 7200 | 8200 | ||
C | 1071 | |||||
L | 32000 | 38000 | 46000 | 52500 | ||
L1 | 7000 | 8000 | 9000 | 10000 | ||
L2 | 7000 | 8000 | 9000 | 10000 | ||
L3 | 6403 | 7403 | 8403 | 9403 | ||
H1 | 15064 | 15068 | 15170 | 15172 | ||
H2 | 10180 | 10184 | 10286 | 10288 | ||
H3 | 12284 | 12288 | 12390 | 12392 | ||
W | 8000 | |||||
B | 10658 | |||||
重量(t)weight | 小车重量 Trolley weight | 13.6 | ||||
起重机总重 Total weight | 106 | 120 | 129 | 135 | ||
最大轮压(KN) Max.Wheel loading | 286 | 305 | 322 | 340 | ||
荐用钢轨(Kg/m) Recommended rails | 43,50,QU80 | |||||
电源Power Supply | 3AC 380V 50HZ |
