10-ton side-mounted gantry crane specifications and models

• Single beam side-hung gantry crane models: MDG type, MDGL type, MDGC type, C type, L type;
• Lifting capacity of side-hung crane: 10 tons and other specifications;
• Common spans: 19 meters, 21 meters, 22.5 meters, 25 meters, Specifications such as 30 meters and 35.5 meters can be customized;
• Common lifting heights: 9 meters, 10 meters, 11 meters, 12 meters, 15 meters, 18 meters, 20 meters and other specifications can be customized;

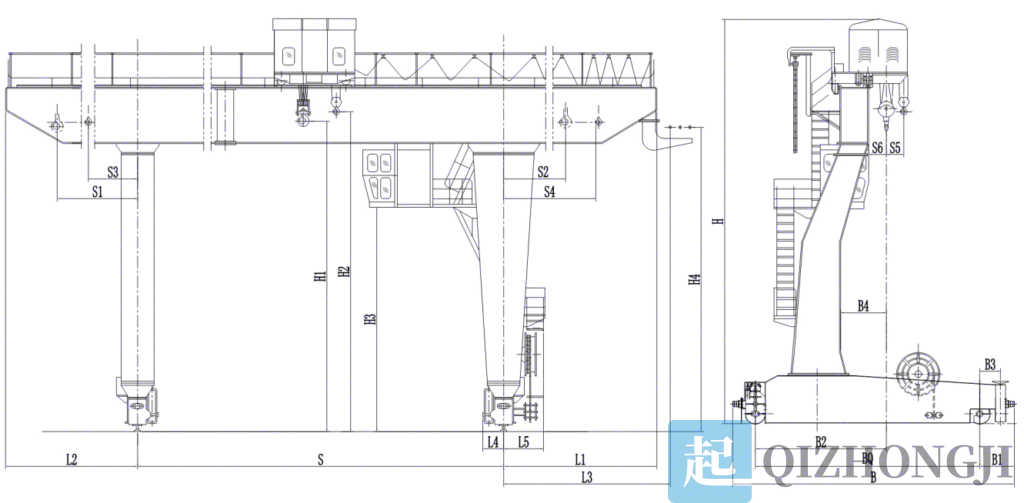

Structural diagram of 10-ton side-mounted gantry crane

Technical parameters of 10-ton side-mounted gantry crane

Lifting capacity	Mam	t	10 tons
	Auxiliary		–
Span		m	18	22	26		30	35
Lifting Height			10				11
			—				one
Duty			A5
Speed	Mam	m/min	8.5
	Auxiliary		one
	Crab travelling		39.7
	Trolley traveling		39.6		40.1
Limt dimension	L1	mm	7000			9000
	L2		7000			9300
	L		–
	C1		5000			7000
	C2		5000			7000
Main dimension	H		13600			14600
	H1		10			11
	H2		–
	H3		660
	B		8600		9100
	IN		7000		7500
	K		1050	1150		1350
	L3		650
Max.Wheel Loading		kN	225	236	239		286	298
Total Power		kw	38		47
Crane Rail Recommended			43kg/m
Power Supply			3-Phase AC 50HZ 380V
