MH type 3t single beam gantry crane parameters

MH type 3t single beam gantry crane

MH type 3t single-girder gantry crane (hereinafter referred to as 3-ton single-girder gantry crane), a 3-ton electric hoist gantry crane used in conjunction with a 3-ton electric hoist, is a small and medium-sized rail-operated crane, which is suitable for lifting The weight is 1~32 tons, the applicable span is 12~35 meters, and the working environment is within -20℃~+40℃.

The Mh 3-ton electric hoist gantry crane is a general-purpose crane, mostly used for loading and unloading or grabbing materials in open spaces and warehouses. This product has two types: ground operation and indoor operation.

MH type 3t single beam gantry crane

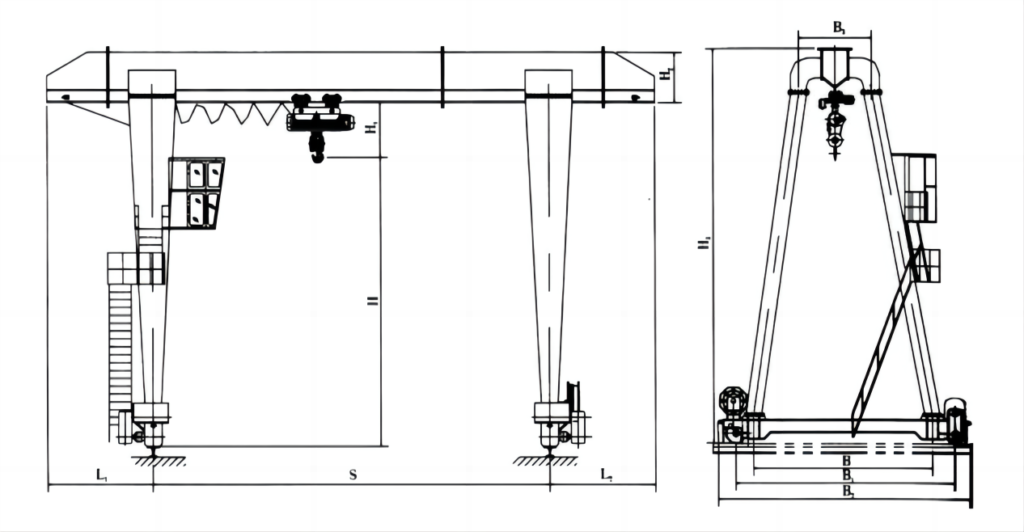

Structural drawing of 3-ton single-girder gantry crane

Structural drawing of 3-ton single-girder gantry crane

3 ton single beam gantry crane parameter size table

Lifting Weightt3 ton
Spanm12162024
Lifting Heightm6/9
Operating organizationTravelling SpeedGroundm/min20
  Controlling  Room 20/30/45
 MotorGroundModel/kwYSE8O₂-4/0.8×2YSE90L-4/1.5×2
  Controlling  Room ZDR100-4/1.5×2ZDR112L1-4/2.1×2
HoistType No.CD,  MD,
 Liting Speedm/min8   0.8/8
 Travelling Speedm/min20
 MotorLiftingModel/kwZD 41-4/4.5 ZDS,0.4/4.5
  Travelling ZDY 12-4/0.4
Working classA3
Steel trackP24   P38
Power Supply三相交流380V 50HZ
The Crane WeightGroundt6.646/8.6467,430/9,4310.163/12.16311.931/13.931
 Controlling  Roomt6.996/8.9967.780/9.7810.513/12.51312.281/14.281
Max.Wheel PressureKN37/4240/4644/5048/54
Basic DimensionsL;mm2000300040005000
 Lamm2000300040005000
 H₁mm960
 H₂mm650700800900
 H₃mm7635/106357685/106857785/107857885/10885
 Bmm4500/55005500/6500
 B₁mm5000/60006000/7000
 B₂mm5400/64006500/7500
 B₂mm1500
