Technical parameters of 10-ton universal gantry crane

• Specifications of MG double-girder hook gantry crane: 10T/5T, etc.;
• Span: 13M, 15M, 17M, 18M, 19M, 20M, 22M, 23M, 30M, etc.;
• Lifting height: 6M, 9M, 12M, 16M, 24M , 30M, etc.;
• We can also customize customized cranes with non-standard designs according to user needs.

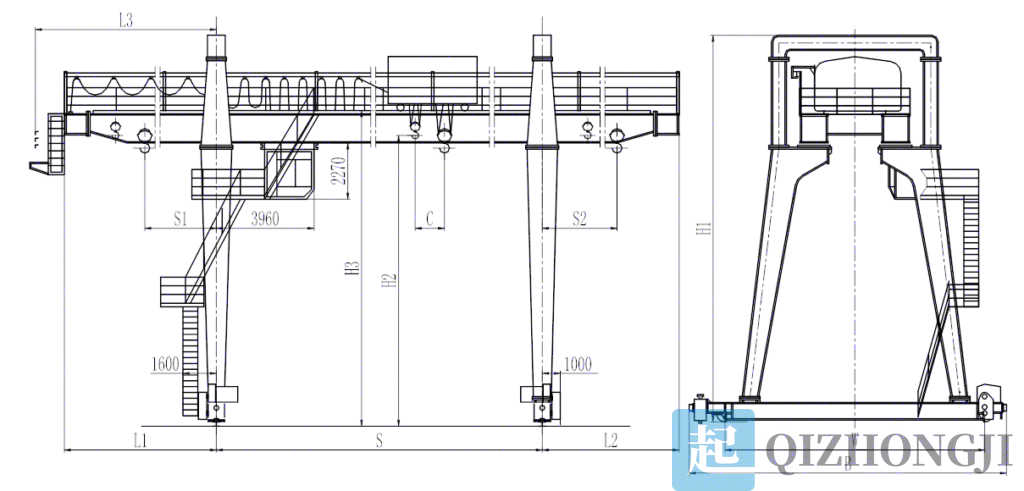

10-ton universal gantry crane structure diagram

Dimensions table of 10-ton universal gantry crane

Lifting capacity(t)			10t
Duty			A5
Span(m)			18	22	26	30
Maximum lifting height (m)		main hook	30m
		Vice hook
Speed(m/min)	Hoisting	main hook	8.52
		Vice hook
	Traversing		42.7
	Traversing		37.8
Motor	Hoisting	main hook	YZR180L-6/15
		Vice hook
	Traversing		YZR132M1-6/2.2
	Traversing		YZR160M2-6/2X7.5		YZR160L-/2X11
Main Dimension(mm)		S1	5000	6000	7000	8000
		S2	5000	6000	7000	8000
		C
		L	32000	38000	45000	51000
		L1	7000	8000	9500	10500
		L2	7000	8000	9500	10500
		L3	6403	7403	8403	9403
		H1	13694	13814	13964	14120
		H2	10245	10445	10575	10741
		H3	11295	11495	11625	11791
		W	8000
		B	9712
Weight(t)	Trolley weight		3.4
	Total weight of crane		49.9	54.7	66.5	73.94
Maximum wheel pressure (KN)			220	236	263	280
Recommended rail (Kg/m)			38,43,50
Power Supply			3AC 380V 50HZ
