LH type 16-ton electric hoist double-girder overhead crane parameters
The LH type electric hoist double-girder bridge crane (hereinafter referred to as 16-ton crane/16t crane) is designed and manufactured in accordance with the standard JB/T3695-1994. The LH-type electric hoist double-girder crane is matched with 16-ton electric hoists in the form of CDI, MDI and other forms. Used, it becomes a light and small 16-ton crane operating on rails. Its applicable lifting capacity is 16t, its applicable span is 7.5-35 meters, the working level is A3~A4, and the working environment temperature is within the range of -25℃ ~ +40℃.

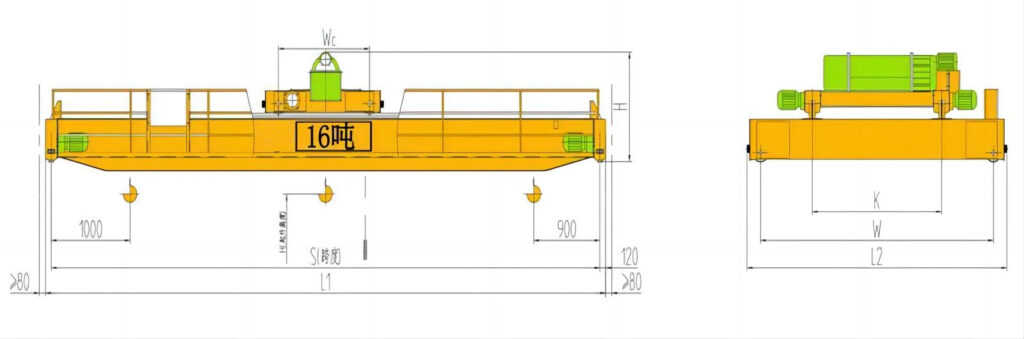

16-ton electric hoist double-girder crane structure diagram
Technical parameters of 16-ton electric hoist double-girder crane
| Name | Model unit | LH type 16-ton hoist double-girder bridge crane (LH-type 16-ton hoist double-girder crane, LH-type 16-ton hoist bridge crane, 16-ton crane, 16-ton double-girder crane, 16-ton crane, 16-ton bridge crane) model indication ：LH16t-D, LH16t-S | |||||||||||||
| Lifting weight Q | t | 16 ton crane 16t (16t/5t) | |||||||||||||
| Control type | Ground control, control room control | ||||||||||||||
| Cart | Running speed V | m/min | 20 | 30 | 45 | ||||||||||
| Electric motor | model | ZDY122–4 | |||||||||||||
| power | kw | 2×1.5 | |||||||||||||
| Rotating speed | RPM | 1380 | |||||||||||||
| Rise | Electric hoist | model | CD1 MD1 | ||||||||||||
| Crane | Lifting height | m | 6, 9, 12 | ||||||||||||
| Lifting speed V1 | m/min | 3.5 3.5/0.35 | |||||||||||||
| Running speed V2 | m/min | 20 | |||||||||||||
| Classification group | A3~A5 | ||||||||||||||
| power supply | 3 phase 50HZ 380V | ||||||||||||||
| Wheel diameter (large car/small car) | mm | φ350,φ400/φ270 | |||||||||||||
| Recommended rails | model | P30,P38,P43 | |||||||||||||
| Span S | m | 10.5 | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | ||||||
| Maximum wheel pressure | KN | 117 | 121 | 127 | 132 | 139 | 145 | 153 | 161 | ||||||
| Total weight W | KG | 6765 | 8272 | 10390 | 12529 | 14605 | 17010 | 20235 | 23542 | ||||||
| Basic size | K | mm | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | 1800 | |||||
| W | mm | 3400 | 3400 | 3400 | 3400 | 3400 | 3400 | 4000 | 4000 | ||||||
| L2 | mm | 4000 | 4000 | 4000 | 4000 | 4000 | 4000 | 4600 | 4600 | ||||||
| L1 | mm | 10802 | 13802 | 16802 | 19802 | 22802 | 25802 | 28802 | 31802 | ||||||
| WC | mm | 1300(1950) | |||||||||||||
| H | mm | 1414 | 1464 | ||||||||||||
