L-type 20t/5t single main beam hook gantry crane parameters
20-ton side-mounted gantry crane specifications
- Single beam side-mounted gantry crane models: MDG type, MDGL type, MDGC type, C type, L type;
- L-shaped common lfting capacity: 20/5 tons and other specifications;
- C-shaped common lifting capacity: 20/5 tons and other specifications;
- Common spans: 19 meters, 21 meters, 22.5 meters, 25 meters, 30 meters, 35.5 meters and other specifications, can be customized;
- Common lifting heights: 9 meters, 10 meters, 11 meters, 12 meters, 15 meters, 18 meters, 20 meters Meter and other specifications, can be customized;

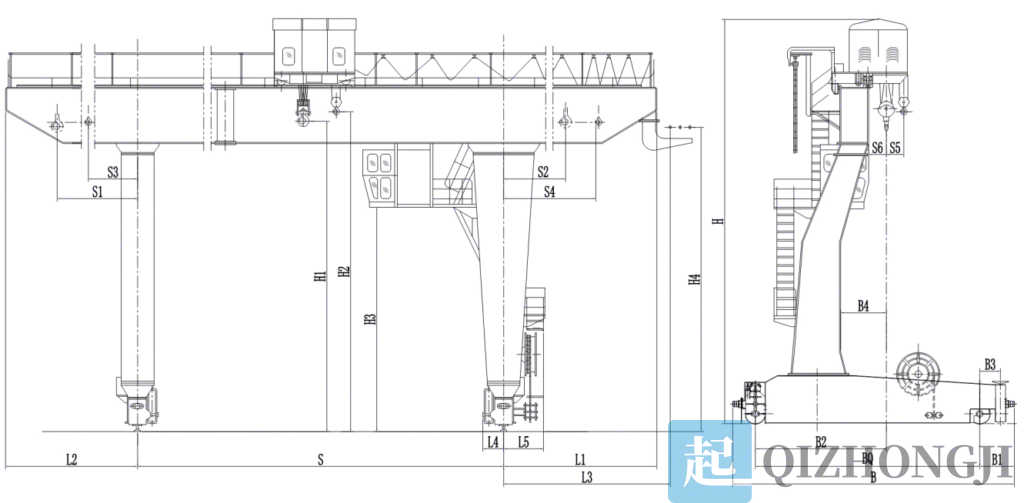

Structural diagram of 20-ton side-mounted gantry crane
Technical parameters of 20-ton side-hung gantry crane
Lifting capacityCap | Main hook Main | t | 20 tons | |||||
Auxiliary | 5 tons | |||||||
Span | m | 18 | 22 | 26 | 30 | 35 | ||
Lifting Height Lifting Height | Main hook Main | 10 | 11 | |||||
Auxiliary | 10.5 | 11.5 | ||||||
Work systemDuty | A5 | |||||||
SpeedSpeed | Main hook | m/min | 7.1 | |||||
Auxiliary | 9.2 | |||||||
Crab travelling | 39.3 | |||||||
Trolley traveling | 40.1 | 47.1 | ||||||
Limt dimension | L1 | mm | 7200 | 9200 | ||||
L2 | 7900 | 10400 | ||||||
L | 1483 | |||||||
C1 | 5000 | 7000 | ||||||
C2 | 5000 | 7000 | ||||||
Main dimensionsMain dimensions | H | 13860 | 14860 | |||||
H1 | 10 | 11 | ||||||
H2 | 0 | |||||||
H3 | 660 | 762 | ||||||
B | 9250 | 10000 | ||||||
IN | 7500 | 8000 | ||||||
K | 1250 | 1350 | 1550 | |||||
L3 | 65Q | |||||||
Max.Wheel Loading | kN | 340 | 346 | -362 | 419 | 432 | ||
Motor total powerTotal Power | kw | 67.3 | 78.3 | |||||
Crane Rail Recommended | 43kg/m | |||||||
Power Supply | Three-phase AC 3-Phase AC50HZ 380V |
