Insulated bridge crane technical parameters

Insulated-Overhead-Crane

Introduction to insulated cranes

Insulated bridge crane is suitable for smelting workshops of non-ferrous metal electrolytic aluminum, magnesium, lead and zinc. Lifting capacity: 5, 10, 16, 16/3.2, 20/5 tons, etc. Since the ground equipment in the workshop contains DC current, in order to prevent the current from the live equipment from being transmitted to the crane through the lifted components during the work, endangering the life of the crane operator and the safety of the equipment, set up at appropriate parts of the crane. There are several insulation devices, so it is called an insulated crane. Safe and reliable with good performance.

Insulated Crane Instructions

  • Product name: Insulated bridge crane
  • Alias: Insulated overhead crane/crane/air crane/air car
  • Model specifications: QY series
  • Category: Insulated double beam bridge type
  • Product Origin: Xinxiang, Henan
  • Non-standard customization: Non-standard customization is available
  • Power form: three-phase AC 380V-50Hz
  • In stock or not: customized production
  • Production cycle: 45~60 days
  • Scope of supply: Nationwide
  • Delivery method: self-pickup / freight forwarding
  • Whether to install: Installation is extra
  • After-sales service: one year warranty
 Insulated bridge crane

Insulated crane parameters

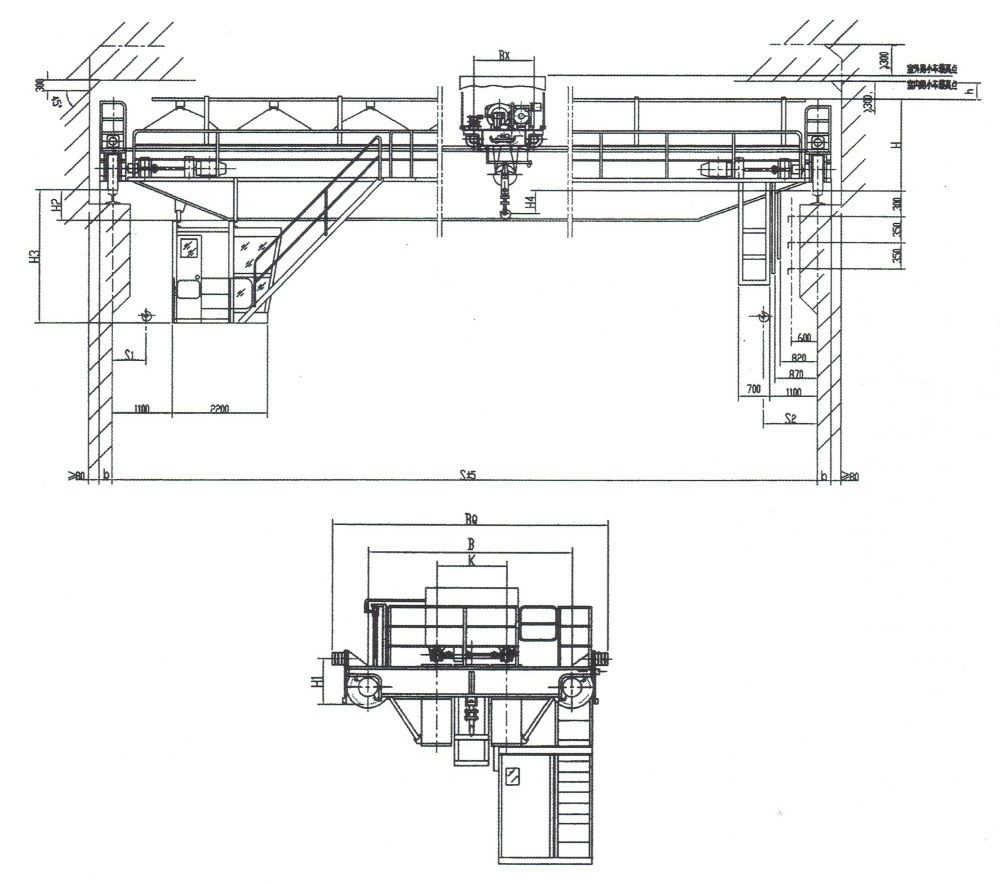

Dimensional drawing of QY type 5-10 tons insulated bridge crane
Dimensional drawing of QY type 5-10 tons insulated bridge crane

QY type 5-10 tons insulated bridge crane technical parameters and size table

Lifting capacityt510
spanm10.513.516.519.522.525.528.531.510.513.516.519.522.525.528.531.5
Maximum lifting heightm16
Working levelA6A6
speed
Risem/
min
15.610.4
Car running37.243.8
Cart running92.793.792.793.786.5
electric
motor
RiseKWYZR180L-6/15YZR200L-6/22
Car runningYZR112M-6/1.8YZR132M 1 -6/2.5
Cart runningYZR160M1-6/2×5.5YZR160M2-6/
2×7.5
YZR160M1-6/
2×5.5
YZR160M2-6/2×7.5
Main dimensions
(mm)
H176418741926
H32526254625962756290630563206335625262546259627562906300831583308
H 1735790
H 476112821232
h870
k14002000
BQ519053406100584059806330
B34003550500040505000
BX11001400
b230
H2-24126226376526676826976-24126226376526676826976
S 18001050
S212501300
weightcart2.3293.651
total weight14151720222731341517202225303336
Maximum wheel pressureKN859192104111125133138111118126131138154163171
Recommended rails38Kg/m43Kg/m
power supplyThree-phase AC 50Hz 380V

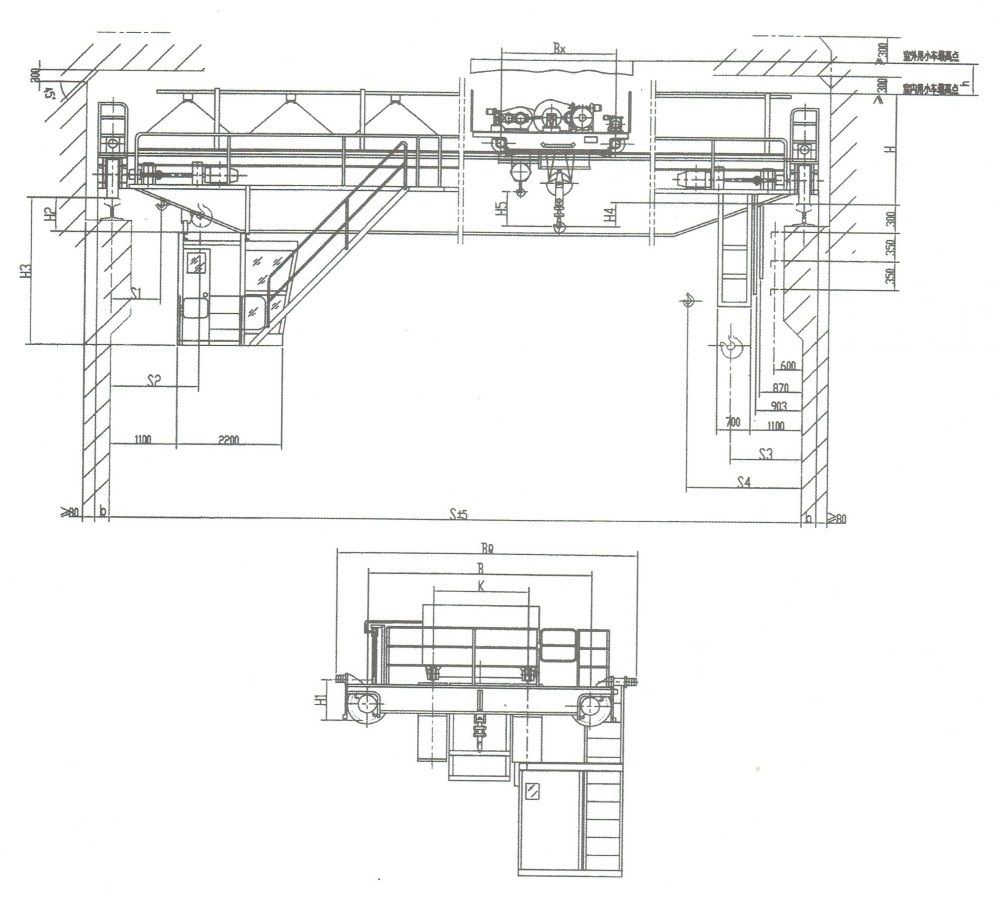

Dimensional drawing of QY type 16/3.2-20/5 ton insulated bridge crane
Dimensional drawing of QY type 16/3.2-20/5 ton insulated bridge crane

QY type 16/3.2-20/5 ton insulated bridge crane technical parameters and size table

Lifting capacityt16/3.220/5
spanm10.513.516.519.522.525.528.531.510.513.516.519.522.525.528.531.5
Maximum lifting heightMain1612
Auxiliary1814
Working levelA6A6
speedMain hookm/min10.79.8
Auxiliary hook 14.615.5
Car running44.6
Cart running76897689
electric motorMain hookKWYZR250M1-6/37YZR250M 2-6 /45
Auxiliary hook YZR160L-6/13YZR180L-6/17
Car runningYZR132M 2-6 /4
Cart runningYZR160M1-2-6
/2×7.5
YZR160L-6/2×11YZR160M1-2-6
/2×7.5
YZR160L-6/2×11
Main dimensions
(mm)
H2095209721872185209720992189
H3257025502620277029203070322025702574255426242772292230723222
H 1790880790880
H 41527152514351437146114591369
H 51000596
h820
k2000
BQ623562356835623562356835
B4400500044005000
Bx2400
b230260230260
H2801802403905406908408084184244392542692842
S 110401030
S218501900
S 315001450
S 423102320
weightcart6.5928.64
total weight21232529323640442224273134394346
Maximum wheel pressureKN155164173194203214223232177188199221233243255265
Recommended rails43Kg/m QU70
power supplyThree-phase AC 50Hz 380V

Insulated bridge crane manufacturers also provide services such as design and manufacturing, installation and commissioning, overhaul, repair and maintenance, annual inspection and maintenance in terms of non-standard lifting weight, lifting height, lifting/running speed, change of control methods, etc., and more national standards / Please consult customer service for non-standard insulated bridge crane manufacturer brand, technical parameters, drawing design, construction plan, and quotation budget.
