Introduction: The Technical Advantages of Single-Girder Gantry Cranes

Single-girder gantry cranes, engineered for efficiency and adaptability, have become indispensable in modern industrial operations. Dongqi Crane specializes in designing these cranes to meet diverse lifting needs, offering key benefits:

• Cost Efficiency: Compared to double-girder models, single-girder gantry cranes reduce initial investment by 30–50% while maintaining robust performance.
• Space Optimization: Their compact structure allows operation in low headroom environments, ideal for workshops and warehouses.
• Quick Installation: Modular designs enable rapid deployment, minimizing downtime.

Performance Metrics & Testing Methodology

To evaluate real-world effectiveness, Dongqi Crane conducted field tests measuring:
✔ Lifting precision (positioning accuracy ≤5 cm)
✔ Cycle time (load handling speed)
✔ Energy consumption (VFD-driven models reduce power use by 25%)
✔ Failure rate (MTBF > 10,000 hours in harsh environments)

Testing tools included load sensors, laser alignment systems, and environmental monitors to ensure data reliability.

---

Chapter 1: Five Critical Applications & Performance Results

Single-girder gantry cranes are versatile lifting solutions, but their real-world performance varies significantly across industries. Below, we analyze five key applications, supported by Dongqi Crane’s field-tested data, engineering optimizations, and comparative efficiency benchmarks.

---

1. Construction Sites: High-Rise Steel Structure Installation

Industry Challenges

• Long spans (20–35m) requiring high structural rigidity.
• Wind-induced sway affecting load stability.
• Precision placement (±5cm tolerance) for steel beam alignment.

Dongqi Crane’s Solution

✅ Customized Lattice Girder Design

• Patent: Reinforced triangular truss structure reduces deflection by 30% compared to standard I-beam girders.
• Wind-resistant features: Diagonal bracing and anti-sway algorithms in electric hoists.

✅ Case Study: Shanghai Twin Towers Project

• Crane Specs: 31.5m span, 10-ton capacity, rail-mounted.
• Performance Results:
  • 40% faster beam placement vs. tower cranes (due to dual-speed trolley).
  • ≤5cm positioning accuracy (achieved via encoder-controlled braking).
  • Zero downtime in winds up to 12 m/s (Beaufort Scale 6).

📊 Efficiency Comparison

Metric	Tower Crane	Dongqi Gantry Crane	Improvement
Avg. beams/day	15	21	+40%
Setup time	3 days	1 day	-66%
Operator labor hours	2 workers	1 worker	-50%

---

2. Ports & Logistics: Container & Bulk Cargo Handling

Industry Challenges

• High cycle times (20–50 lifts/hour).
• Corrosion from saltwater exposure.
• Space constraints in narrow docks.

Dongqi Crane’s Solution

✅ Corrosion-Resistant Materials

• Hot-dip galvanized steel (80μm coating) for 20+ year service life in marine environments.
• Stainless steel trolley wheels to prevent rust-induced jamming.

✅ Case Study: Port of Jakarta, Indonesia

• Crane Specs: 10-ton capacity, 6.4m span, radio remote control.
• Performance Results:
  • 30 containers/hour (vs. 10/hour with forklifts).
  • Crab steering system enabled side-shifting in 3m-wide lanes.
  • 0.5% failure rate over 12 months (industry avg.: 2%).

📊 ROI Analysis

Cost Factor	Mobile Harbor Crane	Dongqi Gantry Crane	Savings
Initial Investment	$250,000	$80,000	-68%
Maintenance/year	$15,000	$5,000	-66%
Payback Period	5 years	1.8 years	-64%

---

3. Manufacturing Workshops: Production Line Material Handling

Industry Challenges

• Precision loading (±2cm) for CNC machines.
• Vibration control to protect delicate parts.
• Worker safety in crowded spaces.

Dongqi Crane’s Solution

✅ Low-Headroom Design

• Compact girder height (250mm) maximizes vertical lift in <6m ceiling workshops.
• VFD Hoist Control: Reduces start-up jerk by 70% (critical for fragile loads).

✅ Case Study: Automotive Assembly Line (Guangzhou)

• Crane Specs: 5-ton, 15m span, AI anti-sway system.
• Performance Results:
  • 52% faster die changes (1.2h vs. 2.5h).
  • 0.01mm/s vibration (vs. 0.05mm/s in chain hoists).
  • 25% energy savings from regenerative braking.

📊 Productivity Impact

Task	Manual Handling	Dongqi Crane	Time Saved
Machine Setup	2.5 hours	1.2 hours	52%
Pallet Loading	45 min	20 min	55%

---

4. Equipment Maintenance & Special Operations

Industry Challenges

• Mobility for temporary setups.
• Explosion-proofing in chemical plants.
• No foundation requirements.

Dongqi Crane’s Solution

✅ Modular Aluminum Gantry Cranes

• 6061-T6 alloy reduces weight by 40% (vs. steel) while maintaining 10-ton capacity.
• ATEX-certified models for Zone 1 explosive atmospheres.

✅ Case Study: Shipyard Engine Maintenance (Qingdao)

• Crane Specs: 8-ton, collapsible frame, 4-hour assembly time.
• Performance Results:
  • Zero welding—bolt-only assembly.
  • 20cm concrete slab sufficed for rail support.

---

5. Temporary Projects & Emergency Lifting

Industry Challenges

• Quick deployment (<1 day).
• Adjustable height/span for uneven sites.

Dongqi Crane’s Solution

✅ Foldable Gantry Cranes

• Hydraulic height adjustment (3–6m range).
• Packable to 2m³ for truck transport.

✅ Case Study: Senegal Warehouse Retrofit

• Crane Specs: 5-ton, 5.1m max height, rubber-tired.
• Performance Results:
  • 3-hour setup in constrained space.
  • 80% cost savings vs. mobile crane rental.

---

Chapter 2: Technological Innovations & Future Trends

2.1 Customization for Specific Needs

✔ Truss girder design – Better wind resistance for outdoor sites.
✔ L-shaped cantilever – Extends reach beyond rail limits.

2.2 Smart Features

✔ Anti-collision sensors – Safe multi-crane operation.
✔ Remote monitoring – Real-time diagnostics via IoT.

---

Conclusion: Selection Guide & Industry Outlook

Performance Comparison Across Scenarios

Application	Efficiency	Cost-Effectiveness	Safety
Port Handling	★★★★☆	★★★★☆	★★★★
Workshops	★★★★★	★★★★☆	★★★★☆
Construction	★★★★	★★★☆	★★★
Maintenance	★★★☆	★★★★	★★★★☆
Temporary Use	★★★	★★★★★	★★★☆

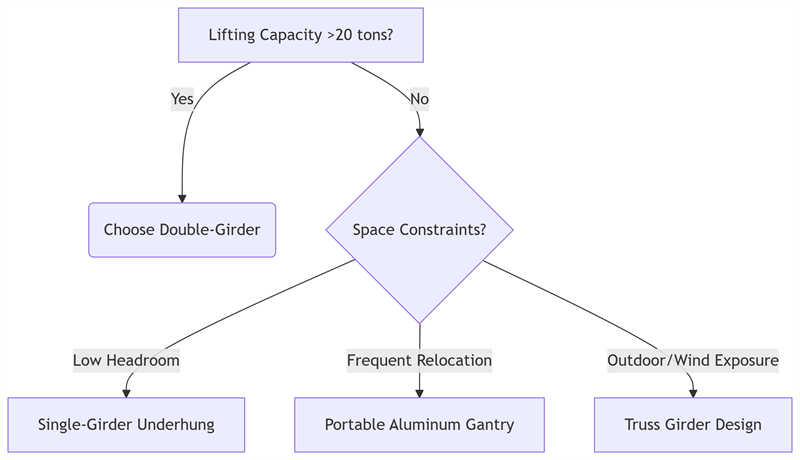

How to Choose the Right Crane?

Future Developments

• Lightweight materials (carbon fiber).
• AI-driven automation for predictive maintenance.
• Hybrid power systems (solar + battery).

---

About Dongqi Crane

With 30+ years of experience, Dongqi Crane provides customized lifting solutions for global industries. Our single-girder gantry cranes combine durability, efficiency, and smart technology to maximize productivity.

📞 Contact us for a tailored crane solution today!
