Flexible Application of Single-Girder Overhead Cranes in Adaptive Production Lines
Introduction: The Rise of Flexible Manufacturing & Material Handling Challenges
The global manufacturing sector is rapidly shifting toward high-mix, low-volume production, with 34% of production lines expected to adopt flexible configurations by 2025. However, traditional material handling solutions struggle to keep pace due to:
- Long reconfiguration cycles (2–4 weeks for structural modifications).
- High retrofit costs (averaging \$120,000 per line changeover).
- Rigid spatial footprints, limiting layout adaptability.
Dongqi Crane’s single-girder overhead cranes provide a modular, scalable solution, reducing production line reorganization time by 70% while delivering unmatched versatility in dynamic environments.
Technical Advantages: How Dongqi’s Single-Girder Cranes Enable Flexibility
1. Modular Design for Rapid Reconfiguration
- Standardized KBK components: Pre-engineered straight/curved rails and switches allow X/Y/Z-axis expansion at \$150/meter.
- Load capacity tiers: 0.125–5T standard models (customizable for heavy-duty applications).
- Quick-disconnect mechanisms: Patented clamping systems enable workstation relocation in 2 hours—85% faster than welded installations.
2. Space Optimization for Compact Facilities
- Column-free spans: Support intervals up to 9m (vs. 4–5m for conventional cranes), minimizing floor obstructions.
- Low-headroom profiles: Compact beam heights (≤1,170mm) preserve 30% more vertical space versus double-girder designs.
- Multi-mounting options: Ceiling-suspended, floor-supported, or hybrid configurations with ±5° tilt tolerance.
3. Intelligent Control for Precision Handling
- ±1mm positioning accuracy: VFD drives + encoder feedback for delicate assembly tasks.
- Collision avoidance: Laser-based proximity sensors with <50ms response time.
- Operator interfaces: Pendants, mobile apps, or voice control for reduced training overhead.
Performance Comparison: Dongqi Single-Girder Cranes
| Parameter | Basic | Smart | Heavy-Duty |
|---|---|---|---|
| Max. Capacity | 0.5–1T | 1–2T | 2–5T |
| Reconfig Time | 4 hours | 2 hours | 8 hours |
| Positioning | ±5mm | ±1mm | ±10mm |
| Communication | CAN Bus | EtherCAT | PROFINET |
Industry Applications & ROI Case Studies
1. Automotive Mixed-Model Assembly (Dongqi KBK System)
Challenge: Frequent changeovers between transmission and engine block handling.
Solution: Dual-track KBK system with cross-transfer capability.
Results:
✔ 350 units/day mixed-flow production.
✔ Workstation switch time reduced from 45 to 8 minutes.
2. Aerospace Composite Handling (Dongqi Synchronized Lifting)
Challenge: Damage-free positioning of \$2.5M wing components.
Solution: 6-point synchronized lifting with <5% load variance.
Key Benefit: Eliminated ground contact risks during fuselage rotations.
3. Lithium Battery Cleanroom Logistics (Dongqi IP54 Enclosed Track)
Challenge: Contamination-free transport of sensitive battery cells.
Solution: Aluminum alloy track + IP54-rated enclosure.
Added Value: Noise levels ≤55dB(A) prevented instrument interference.
Implementation Guide for Flexible Production Lines

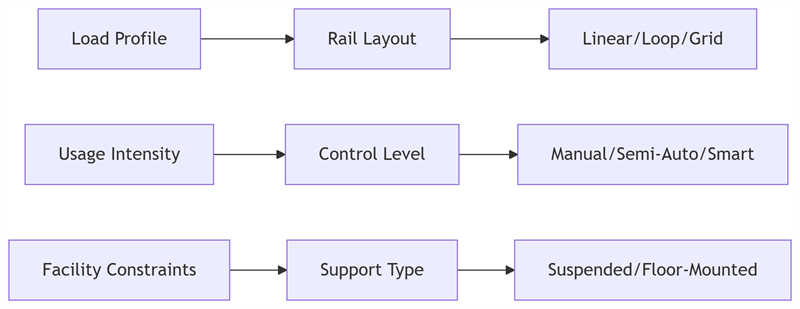

1. Selection Criteria
- Dynamic load factor: ≥1.25 for shock absorption.
- Duty cycle classification: A3 (medium) to A5 (continuous).
2. Installation & Future-Proofing
- 3D laser scanning: Ensures collision-free routing around obstructions.
- FEA validation: Simulates worst-case sway (safety factor ≥1.67).
- Expansion-ready: Recommend 20% length + 15% capacity buffer.
Dongqi Crane’s Customer Success Story
Client: A leading EV battery manufacturer in China.
Problem: 14-day production line reconfigurations delayed new model launches.
Solution: Dongqi’s modular KBK system with smart controls.
Results:
✓ 11-month ROI from 210% faster material turnover.
✓ Line reconfiguration time slashed to 3 days (from 14 days).
✓ Zero failures in 3 years of high-temperature operation.
Testimonial:
“Dongqi’s cranes enabled us to adapt production lines in days, not weeks. Their reliability in our harsh environment has been exceptional.”
— Production Director, EV Battery Manufacturer
Key Takeaways for Manufacturers
✅ Prioritize modularity for future layout changes.
✅ Match load/accuracy needs to crane classes (Basic/Smart/Heavy-Duty).
✅ Leverage industry-specific designs (e.g., cleanroom or sync-lift).
Next Step: Contact Dongqi’s engineers for a free flexibility assessment of your production line.
