5t MH electric hoist gantry crane Parameter table
MH type electric hoist gantry crane is a single girder box type gantry crane with electric hoist as the lifting mechanism. It can be divided into truss type and box type. The lifting capacity is generally less than 32 tons. I will introduce the technical parameters of the 5-ton electric hoist gantry crane.

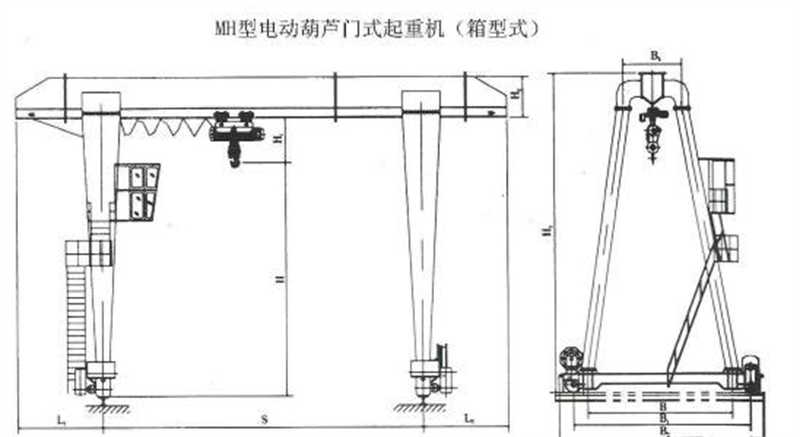

Structural Drawing of MH Portal Crane (Box Type)
Technical parameters of 5t electric hoist gantry crane:
| Lifting height | t | 5 | ||||||
| Span | m | 12 | 16 | 20 | 24 | 30 | ||
| Lifting height(m) | m | 6;9 | 9 | |||||
| travelling mechanism | Running speed | ground | m/min | 20 | ||||
| driver’s room | 20 30 45 | |||||||
| motor | ground | YZR132M2-6/3.7×2 | YZR160M1-6/5.5×2 | |||||
| driver’s room | ||||||||
| reducer | mm | ZSC400 | ZSC600 | |||||
| Wheel diameter | φ400 | φ500 | ||||||
| hoist | modal | m/min | CD1 MD1 | |||||
| hoisting speed | m/min | 8 0.8/8 | ||||||
| travelling speed | 20 | |||||||
| motor | hoisting | ZD141-4/7.5 ZDS10.8/7.5 | ||||||
| travelling | ZDY12-4/0.8 | |||||||
| Working class | A5 | |||||||
| Recommended rails | P24 P38 | |||||||
| power supply | Three-phase AC 380V 50HZ | |||||||
| Crane quality | ground | kg | 8234 | 11271 | 13170 | 17830 | 22106 | |
| driver’s room | kg | 8584 | 11620 | 13520 | 18181 | 25500 | ||
| Maximum wheel pressure | kN | 54/59 | 62/67 | 70/75 | 78/83 | 91/96 | ||
| basic size | L1 | mm | 3000 | 4000 | 5000 | 6000 | 7500 | |
| L2 | mm | |||||||
| H1 | mm | 1160 | ||||||
| H2 | mm | 800 | 900 | 1000 | 1150 | 1300 | ||
| H3 | mm | 760/10960 | 8060/11060 | 8160/11160 | 8310/11310 | 11460 | ||
| B | mm | 4500/5500 | 5500/6500 | |||||
| B1 | mm | 5500/6500 | 6500/7500 | |||||
| B2 | mm | 6000/7000 | 7100/8100 | |||||
| B3 | mm | 1500 | ||||||
