20 Ton Electric Chain Hoist
When it comes to heavy industrial lifting, a 20 ton electric chain hoist delivers the power, precision, and reliability needed for demanding applications. Dongqi Crane, a leading manufacturer of high-performance lifting equipment, offers two robust configurations of 20 ton electric chain hoists:
- Fixed Electric Chain Hoist – Ideal for stationary lifting in workshops and production lines.
- Trolley-Mounted (Running) Electric Chain Hoist – Designed for horizontal movement along I-beam tracks.
This guide explores the 20 ton electric chain hoist price, key specifications, and why Dongqi Crane stands out as a top choice for industrial buyers.
Why Choose a 20 Ton Electric Chain Hoist?
Key Benefits:
✔ High Load Capacity – Reliably lifts up to 20 tons with smooth operation.
✔ Durable Construction – Grade 80/100 alloy steel chain for superior strength.
✔ Safety Features – Overload protection, emergency stop, and thermal cut-off.
✔ Energy Efficiency – Advanced motor technology reduces power consumption.
Industries Served:
- Steel & Metal Fabrication – Handling heavy beams, coils, and molds.
- Construction & Shipbuilding – Moving large structural components.
- Mining & Heavy Machinery – Equipment maintenance and assembly.
Dongqi Crane’s 20 Ton Electric Chain Hoist Models
1. Fixed 20 Ton Electric Chain Hoist
(Best for stationary lifting applications)
Technical Specifications:
| Parameter | Specification |
|---|---|
| Capacity | 20 tons |
| Lifting Speed | 3 m/min (standard), 0.8 m/min (precision) |
| Chain Diameter | 16 mm (Grade 100 alloy steel) |
| Motor Power | 13 kW (thermally protected) |
| Protection Class | IP55 (dust & water-resistant) |
| Dimensions (LxWxH) | 900 x 550 x 700 mm |
| Net Weight | ~1,200 kg |
Best Applications:
✔ Fixed lifting in foundries and forging plants
✔ Heavy machinery maintenance
✔ Production line material handling

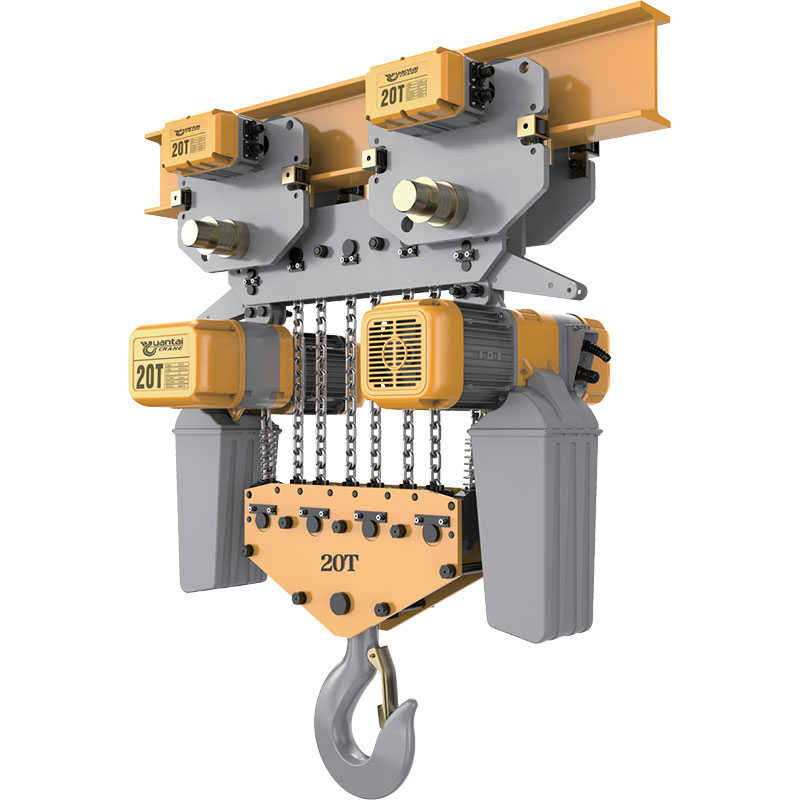

2. Trolley-Mounted 20 Ton Electric Chain Hoist
(For horizontal movement along I-beams)
Technical Specifications:
| Parameter | Specification |
|---|---|
| Capacity | 20 tons |
| Lifting Speed | 2.5 m/min (standard), 0.5 m/min (precision) |
| Travel Speed | 15 m/min (adjustable) |
| Chain Diameter | 16 mm (Grade 100 alloy steel) |
| Motor Power | Lifting: 13 kW / Travel: 2.2 kW |
| Beam Compatibility | Works with 200-400mm I-beams |
| Protection Class | IP55 |
| Dimensions (LxWxH) | 1,100 x 600 x 800 mm |
| Net Weight | ~1,500 kg |
Best Applications:
✔ Warehouse & logistics heavy load shifting
✔ Shipyard gantry crane systems
✔ Large-scale manufacturing assembly
20 Ton Electric Chain Hoist Price – Cost Analysis
Price Comparison (2024 Market Rates)
| Model | Dongqi Crane | Competitor A | Competitor B |
|---|---|---|---|
| Fixed Hoist | $12,500 – $16,800 | $18,000 – $24,000 | $20,000 – $26,000 |
| Trolley-Mounted Hoist | $18,000 – $23,500 | $25,000 – $32,000 | $28,000 – $35,000 |
Factors Affecting Price:
- Control System (Pendant vs. Remote = +$800-$1,500)
- Duty Cycle (A5 standard vs. A7 heavy-duty = +15-25%)
- Special Features (Explosion-proof = +30%)
Why Dongqi Crane Offers Better Value?
✔ Direct factory pricing (no middlemen)
✔ Longer warranty (3 years vs. 1-2 years standard)
✔ Custom configurations available at competitive rates
Where to Buy a 20 Ton Electric Chain Hoist for Sale?
Dongqi Crane provides 20 ton electric chain hoists for sale with:
✅ Global shipping (FOB or CIF terms available)
✅ On-site installation support (optional)
✅ After-sales service network in 50+ countries
Special Offers:
- 5% discount for orders of 3+ units
- Free spare parts kit with every hoist purchase
Dongqi Crane vs. Competitors – Why Choose Us?
| Feature | Dongqi Crane | Industry Average |
|---|---|---|
| Load Chain Quality | Grade 100 alloy steel | Grade 80 typical |
| Motor Efficiency | IE3 premium efficiency | IE2 standard |
| Warranty Coverage | 3 years full warranty | 1-2 years limited |
| Delivery Time | 6-8 weeks | 10-16 weeks |
| Customization | Free engineering support | Paid customization |
Conclusion: The Best 20 Ton Electric Chain Hoist Solution
Whether you need a fixed or trolley-mounted 20 ton electric chain hoist, Dongqi Crane delivers:
✔ Proven reliability in extreme conditions
✔ Competitive pricing without quality compromise
✔ Full technical support from specification to installation
