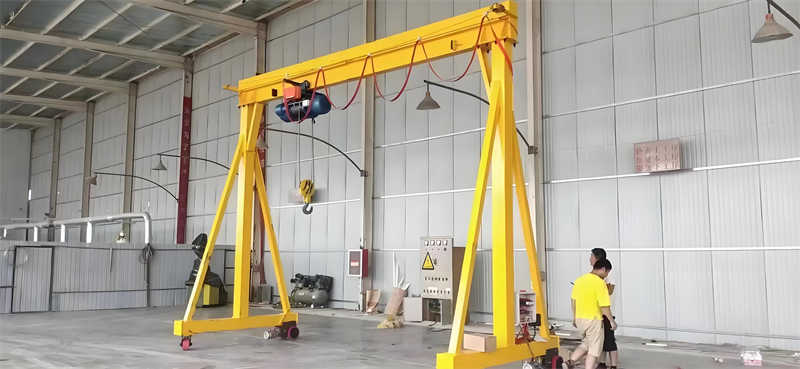

1. Introduction to 2 Ton A-Frame Gantry Cranes

The 2 ton A-frame gantry crane represents the optimal lightweight lifting solution for workshops, warehouses, and manufacturing facilities. As a specialized type of A-frame lifting equipment, these cranes combine the stability of an A-frame structure with the mobility of gantry systems, making them indispensable for material handling operations requiring precision and flexibility.

Key Features & Benefits

• 2-ton (4,000 lbs) lifting capacity – Ideal for medium-duty applications
• A-frame design – Superior stability compared to traditional I-beam gantries
• Modular construction – Easy assembly and reconfiguration
• Space-efficient operation – Perfect for facilities with limited headroom
• Cost-effective solution – Lower initial investment than bridge cranes

2. Technical Specifications & Configurations

2.1 Standard Specifications

Parameter	Specification	Customization Options
Capacity	2 metric tons	Up to 3 tons available
Span	3-8 meters	Extendable to 10 meters
Lifting Height	2-6 meters	Adjustable in 0.5m increments
Wheel Type	Polyurethane	Nylon or steel alternatives
Power Supply	220V/380V 50Hz	110V/480V 60Hz available
Travel Speed	8-20 m/min	Variable frequency drive option

2.2 Structural Components

1. A-Frame Supports

• High-strength steel construction
• Reinforced diagonal bracing
• Adjustable width bases

1. Main Beam

• European standard I-beam profile
• Precision-machined running surfaces
• Optional double-girder reinforcement

1. Hoist System

• Compatible with 2 ton A-frame hoist
• Electric chain or wire rope options
• Manual or powered trolley

3. Applications Across Industries – Detailed Analysis

3.1 Manufacturing & Production Facilities

Precision Component Handling

• Electronics Manufacturing: Delicate positioning of circuit boards and assemblies
• Medical Device Production: Sterile environment handling of sensitive equipment
• Optical Instrument Assembly: Precise alignment of lenses and components

Special Requirements:

• Anti-static features
• Vibration damping systems
• Cleanroom-compatible materials

Heavy Machinery Maintenance

• Industrial Equipment: Servicing presses, CNC machines
• Production Lines: Die changes in stamping operations
• Conveyor Systems: Belt and roller replacement

Technical Considerations:

• 360° rotating capability
• Micro-speed controls (0.5-2 m/min)
• Load moment indicators

3.2 Warehouse & Logistics Operations

Loading Dock Applications

• Container Unloading: Handling 20’/40′ boxes
• Cross-Docking: Rapid transfer between vehicles
• High-Bay Storage: Selective rack access

Optimization Features:

• Collapsible design for dock door clearance
• Quick-release container attachments
• Anti-sway control systems

Specialized Material Handling

• Drum Rotation: 180° flipping capability
• Coil Handling: C-shaped lifting attachments
• Pallet Management: Integrated scale systems

3.3 Automotive & Transportation

Vehicle Service Applications

• Engine Removal: Complete powertrain extraction
• Chassis Work: Suspension component replacement
• Body Shop: Panel positioning and alignment

Specialized Configurations:

• Low-profile designs for service pits
• Oil-resistant wheel compounds
• Explosion-proof options for fuel work

Aerospace Maintenance

• Component Handling: Landing gear, avionics
• Engine Maintenance: Turbine installation/removal
• Composite Work: Delicate panel positioning

Critical Features:

• Non-magnetic versions
• Spark-resistant materials
• Precision balancing systems

3.4 Construction & Infrastructure

Jobsite Applications

• Prefab Installation: Wall panels, structural elements
• Equipment Maintenance: Generator servicing
• Material Distribution: Steel, concrete forms

Ruggedized Features:

• All-terrain wheel options
• Dust-proof electrical systems
• Corrosion-resistant coatings

Special Projects

• Data Center Installation: Server rack positioning
• Renewable Energy: Solar panel handling
• Telecom: Tower component assembly

3.5 Marine & Offshore

Shipyard Operations

• Engine Room Work: Component replacement
• Deck Operations: Cargo handling
• Dry Dock: Hull maintenance

Marine-Grade Features:

• Saltwater-resistant materials
• Deck anchoring systems
• Humidity-controlled electricals

Port Applications

• Container Stuffing: Yard operations
• Equipment Maintenance: Crane servicing
• Barge Loading: Material transfer

3.6 Energy Sector Applications

Power Generation

• Turbine Maintenance: Gas/steam turbine handling
• Transformer Replacement: Substation work
• Boiler Maintenance: Tube bundle extraction

Special Requirements:*

• Non-sparking tools
• High-temperature tolerances
• Clean energy variants

Oil & Gas

• Refinery Maintenance: Column internals
• Pipeline Work: Valve replacement
• Drilling Sites: Equipment handling

Hazardous Area Features:

• ATEX-certified components
• Vapor-proof enclosures
• Grounding systems

3.7 Specialized Industry Solutions

Food & Beverage

• Hygienic stainless steel models
• Washdown-ready electricals
• FDA-compliant materials

Pharmaceutical

• Cleanroom-certified
• Particulate containment
• Documentation packages

Mining & Minerals

• Dust-proof construction
• Heavy-duty wheel assemblies
• Remote operation options

Each application benefits from customizable features:

• Load Attachments: Spreaders, grabs, magnets
• Control Systems: Pendant, radio, automated
• Environmental Adaptations: Temperature, corrosion, hygiene
• Safety Enhancements: Cameras, sensors, alarms

Industry-Specific Packages Available:

• Manufacturing Precision Kit
• Logistics Speed Package
• Heavy-Duty Construction Set
• Marine-Grade Configuration
• Hazardous Area Solution

For detailed application engineering support, contact our technical team for a free consultation on optimizing a 2 ton A-frame gantry crane for your specific operational requirements.

4. Comparing A-Frame Gantry Cranes to Alternatives

4.1 Advantages Over Other Lifting Solutions

Feature	2 Ton A-Frame Gantry	Jib Crane	Bridge Crane
Mobility	Excellent	Limited	None
Installation Cost	$3,000-$8,000	$2,000-$5,000	$15,000+
Space Requirements	Low	Very Low	High
Outdoor Use	Yes	Limited	No
Capacity Expansion	Easy	Difficult	Difficult

4.2 Why Choose 2 Ton Capacity?

• Handles majority of workshop loads
• Lower structural requirements
• Reduced power consumption
• Easier operator certification
• More affordable maintenance

5. Customization Options for 2 Ton A-Frame Gantry Cranes

5.1 Structural Customizations

Frame Modifications

• Adjustable Width Systems
• Telescoping legs with 25-35% width adjustment range
• Locking pins at 100mm intervals for precise positioning
• Maximum span extension up to 12 meters
• Height Variations
• Collapsible designs (30% height reduction for storage)
• Telescoping masts (2-6m adjustable range)
• Fixed-height heavy-duty models
• Material Upgrades
• Aerospace-grade aluminum (40% weight reduction)
• Weather-resistant steel (S355JR/S355J2)
• Marine-grade stainless steel (316L)

Base Configurations

• Wheel Options Type Load Capacity Surface Noise Level Polyurethane 500kg/wheel Smooth concrete Low Nylon 750kg/wheel Rough terrain Medium Steel 1000kg/wheel Rail tracks High Pneumatic 400kg/wheel Outdoor uneven Very Low
• Mobility Packages
• Manual push (standard)
• Geared manual drive (3:1 reduction)
• Motorized travel (0-20m/min VFD control)
• Rail-guided systems (±5mm accuracy)

5.2 Lifting & Control Systems

Hoist Options

• Electric Chain Hoists
• 2 ton capacity, 3/1/0.3 m/min speeds
• IP55 protection, 40% duty cycle
• Overload cut-off at 110%
• Wire Rope Hoists
• 2 ton capacity, 8/0.8 m/min speeds
• FEM 2m duty class
• Rope guide systems
• Specialty Hoists
• Explosion-proof (ATEX/UL)
• High-temperature (up to 150°C)
• Low-headroom designs

Control Systems

• Standard Options
• 8-button pendant control (10m cable)
• Radio remote (100m range)
• Cabin operation (AC/heat available)
• Advanced Features
• Variable frequency drives (soft start/stop)
• Load moment indicators (±1% accuracy)
• Anti-sway control systems

5.3 Special Application Packages

Environmental Adaptations

• Tropical Package
• IP66 electrical components
• Enhanced ventilation systems
• Mold-resistant coatings
• Arctic Package
• Low-temperature lubricants (-40°C)
• Heated control stations
• Ice-resistant wheel coatings
• Corrosion-Resistant Set
• 316 stainless steel hardware
• Cable-in-conduit wiring
• Triple-coat paint system

Industry-Specific Kits

• Manufacturing Precision Kit
• Micro-speed controls (0.1 m/min)
• Laser alignment guides
• Vibration-dampened trolley
• Construction Rugged Pack
• Debris guards
• Impact-resistant covers
• All-terrain wheel sets
• Food-Grade Configuration
• FDA-compliant materials
• Washdown-ready electricals
• Hygienic design surfaces

5.4 Safety & Monitoring Upgrades

Protection Systems

• Collision Avoidance
• Ultrasonic sensors (2m range)
• Laser scanners (270° coverage)
• Emergency braking (<0.5m stop distance)
• Load Monitoring
• Digital display (kg/lbs switchable)
• Data logging (USB export)
• Overload alarm (visual/audible)

Access Systems

• Operator Platforms
• Fixed or foldable designs
• Non-slip grating
• Safety harness points
• Maintenance Access
• Integrated service platforms
• Tool-free inspection hatches
• Rotating ladder systems

5.5 Electrical & Automation

Power Options

• Standard: 380V/50Hz or 480V/60Hz
• Alternatives:
• 220V single-phase
• Battery-powered (8hr runtime)
• Hybrid diesel-electric

Smart Features

• IoT Connectivity
• Remote monitoring
• Predictive maintenance alerts
• Usage analytics
• Automation Ready
• PLC interface ports
• Position feedback systems
• Automated storage/retrieval compatible

5.6 Aesthetic & Ergonomic Customizations

Visual Customization

• Color options (RAL palette)
• Reflective safety markings
• Custom branding/labeling

Operator Comfort

• Ergonomic control handles
• Vibration-reducing grips
• Adjustable pendant stations

5.7 Certification & Compliance

Standard Certifications

• CE, ISO, FEM
• ASME B30.2
• Local market approvals

Special Certifications

• Explosion-proof (ATEX/IECEx)
• Nuclear-grade (ASME NQA-1)
• Military specifications

5.8 Custom Engineering Services

Our technical team provides:

• 3D Modeling & Simulation
• Load Testing & Analysis
• Site-Specific Adaptations
• Prototype Development

Lead Times for Custom Orders:

• Standard modifications: +1-2 weeks
• Complex engineering: +3-4 weeks
• Special certifications: +4-6 weeks

Example Custom Project:
Automotive Assembly Gantry

• 2 ton capacity with 6m span
• Aluminum frame with 30% weight reduction
• Cleanroom-compatible electric chain hoist
• Laser-guided positioning system
• IoT-enabled performance monitoring
• Delivery and installation in 8 weeks

6. Safety Features & Compliance

6.1 Standard Safety Systems

• Overload protection device
• Dual braking mechanisms
• Emergency stop controls
• Limit switches
• Anti-collision buffers
• Warning lights/alarms

6.2 International Certifications

• CE Marking (EU compliance)
• ISO 9001 quality system
• FEM 1.001 design standards
• ASME B30.2 safety requirements
• Local market certifications available

7. Installation & Operation

7.1 Site Preparation Guide

1. Floor Requirements

• Minimum 20N/mm² concrete
• Level within ±5mm/m²
• Clear travel path

1. Power Supply

• Stable 3-phase connection
• Proper grounding
• Circuit protection

1. Safety Zones

• 0.8m clearance all around
• Marked operational areas
• Proper lighting

7.2 Operational Training

• Basic lifting principles
• Load weight estimation
• Daily inspection procedures
• Emergency protocols
• Maintenance fundamentals

8. Maintenance & Service

8.1 Recommended Schedule

Frequency	Maintenance Tasks
Daily	Visual inspection, function test
Weekly	Bolt tightness check, lubrication
Monthly	Structural inspection, electrical test
Quarterly	Professional safety audit
Annually	Complete system overhaul

8.2 Common Replacement Parts

• Wire ropes/chains
• Brake pads
• Electrical contacts
• Wheel bearings
• Control pendants

9. Purchasing Considerations

9.1 New vs. Used Equipment

Factor	New Crane	Used Crane
Price	$3,000-$8,000	$1,500-$4,000
Warranty	1-2 years	None
Lifespan	10-15 years	5-8 years
Availability	4-6 weeks	Immediate
Technology	Latest features	Possibly outdated

9.2 Where to Find Quality ‘A-frame gantry crane for sale‘

• Authorized manufacturers
• Industrial equipment dealers
• Online marketplaces (verified sellers)
• Industry trade shows
• Local equipment auctions

10. Why Choose Our 2 Ton A-Frame Gantry Cranes?

10.1 Manufacturing Advantages

• 15+ years specialized experience
• In-house design & production
• Strict quality control
• Competitive pricing

10.2 Service Benefits

• Free technical consultation
• Custom engineering services
• Worldwide shipping
• Local service support

10.3 Customer Success Stories

• Automotive supplier increased productivity by 30%
• Warehouse reduced labor costs by 45%
• Manufacturer eliminated product damage
• Maintenance team improved safety record

11. Frequently Asked Questions

Q: What’s the minimum ceiling height required?
A: Typically 0.5m above maximum lift height + crane structure.

Q: Can the crane be used outdoors?
A: Yes, with proper weather protection options.

Q: How many operators are needed?
A: Most 2-ton models require just one operator.

Q: What’s the typical lead time for delivery?
A: 4-6 weeks for standard configurations.

Q: Do you provide installation services?
A: Yes, we offer professional installation worldwide.

12. Conclusion & Next Steps

The 2 ton A-frame gantry crane offers an unbeatable combination of affordability, flexibility, and performance for material handling applications. Whether you need to improve workshop efficiency, enhance warehouse operations, or streamline manufacturing processes, this versatile lifting solution delivers measurable results.

Ready to Explore Your Options?

📞 +86 18638815424
📧 Email: [email protected]
🌐 Visit: https://pk.craneyt.com/knowledge/2-ton-a-frame-gantry-crane/

Keywords: 2 Ton A-Frame Gantry Crane, A-Frame Lifting Equipment, 2 Ton A-Frame Hoist, A-Frame Gantry Crane for Sale, Workshop Lifting Solutions
