15 Ton Electric Chain Hoist
Introduction to 15 Ton Electric Chain Hoist
A 15 ton electric chain hoist is a heavy-duty lifting device designed for industrial applications requiring reliable and precise load handling. Dongqi Crane offers a range of 15 ton electric chain hoists, including low headroom, fixed, and traveling types, ensuring optimal performance for various material handling needs.
This article explores the 15 ton electric chain hoist price, dimensions, key features, and applications, helping buyers make an informed decision.
Key Features of Dongqi 15 Ton Electric Chain Hoist
1. Robust Construction & High Efficiency
- Load Capacity: 15 tons (with overload protection)
- Lifting Speed: 3.5 m/min (standard), customizable up to 10 m/min
- Motor Power: 7.5 kW – 15 kW (depending on model)
- Duty Class: FEM 3m / H3 (suitable for intensive industrial use)
2. Safety & Reliability
- Double Brake System: Ensures fail-safe load holding
- Thermal Protection: Prevents motor overheating
- Limit Switches: Upper and lower travel limits for safe operation
- IP55 Protection Rating: Resistant to dust and water splashes
3. Versatile Configurations
Dongqi Crane provides three main types of 15 ton electric chain hoists:
| Type | Key Features | Best For |
|---|---|---|
| Low Headroom | Compact design, ideal for limited vertical space | Workshops with low ceilings |
| Fixed Type | Stationary mounting, simple installation | Factories with fixed lifting points |
| Traveling Type | Moves along a beam for flexible positioning | Assembly lines, warehouses |
15 Ton Electric Chain Hoist Price Comparison
The 15 ton electric chain hoist price varies based on configuration, brand, and additional features. Below is a general price range:
| Model | Price (USD) | Price (CNY) | Key Factors Affecting Price |
|---|---|---|---|
| Standard Fixed | $5,500 – $8,000 | ¥40,000 – ¥58,000 | Basic lifting, no travel mechanism |
| Low Headroom | $7,000 – $10,000 | ¥50,000 – ¥72,000 | Space-saving design, higher precision |
| Traveling Type | $9,000 – $14,000 | ¥65,000 – ¥100,000 | Includes trolley & motorized travel |
Why Choose Dongqi Crane?
- Competitive pricing compared to European brands (e.g., Kito, Columbus McKinnon)
- Customizable options (variable speed, explosion-proof, remote control)
- Global certifications (CE, ISO, GOST)

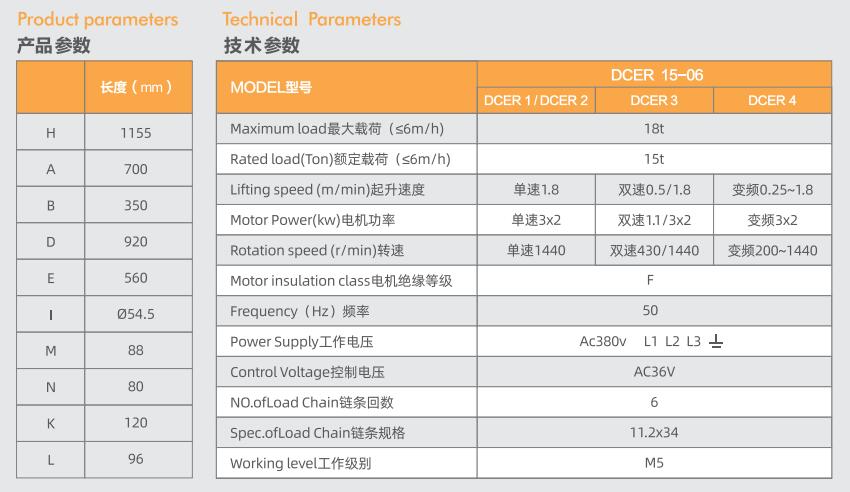

15 Ton Electric Chain Hoist Dimensions & Technical Data
When selecting a 15 ton electric chain hoist, choosing the right type—low headroom, fixed, or traveling—is critical for efficiency and safety. Below is a detailed comparison of Dongqi Crane’s three models, covering design, performance, pricing, and best-fit applications.

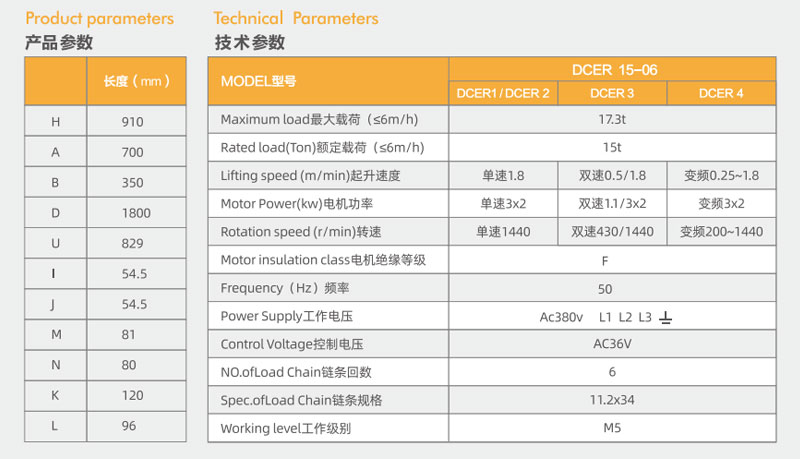

1. Low Headroom 15 Ton Electric Chain Hoist
Design & Key Features
- Ultra-Compact Structure: Minimizes vertical space usage, ideal for facilities with height restrictions.
- Optimized Chain Guide System: Prevents swaying for precise load positioning.
- Close-Proximity Lifting: Saves up to 30% headroom compared to standard hoists.
Technical Specifications
| Parameter | Value |
|---|---|
| Lifting Speed | 3.5 m/min (standard), adjustable up to 8 m/min |
| Headroom Reduction | 300–500 mm less than conventional hoists |
| Motor Power | 7.5 kW (standard) |
| Protection Rating | IP55 (dust/water resistant) |
Best Applications
✔ Automotive assembly lines (limited ceiling height)
✔ Underground mining operations
✔ Multi-level workshops
2. Fixed 15 Ton Electric Chain Hoist
Design & Key Features
- Stationary Mounting: Permanently installed on beams or brackets.
- Simplified Maintenance: Fewer moving parts reduce wear and tear.
- Cost-Effective: Lower price than traveling models.
Technical Specifications
| Parameter | Value |
|---|---|
| Lifting Speed | 3.5 m/min (standard) |
| Chain Diameter | Ø22 mm (Grade 100 alloy steel) |
| Power Supply | 380V/50Hz or 460V/60Hz |
| Duty Cycle | FEM 3m (medium to heavy use) |
Best Applications
✔ Fixed workstation lifting (e.g., forging presses)
✔ Maintenance bays (overhead crane support)
✔ Foundries with dedicated lifting points

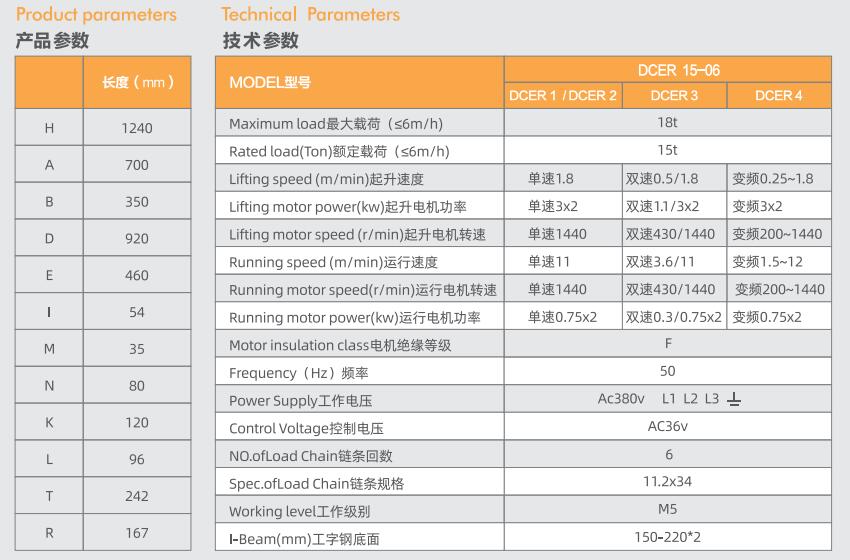

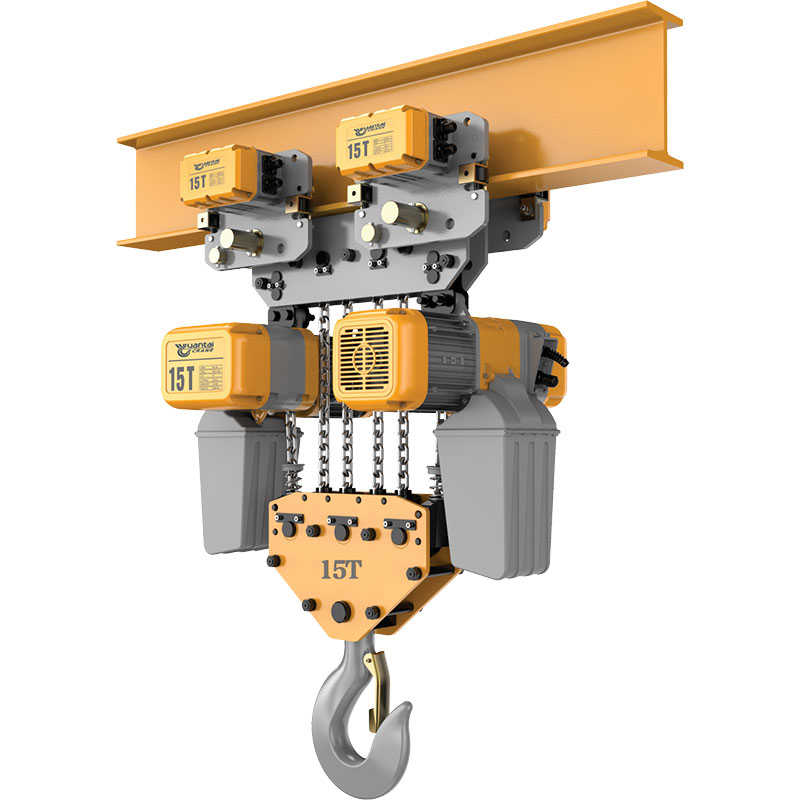

3. Traveling 15 Ton Electric Chain Hoist
Design & Key Features
- Motorized Trolley System: Enables horizontal movement along I-beams.
- Flexible Positioning: Covers wider work areas than fixed hoists.
- Variable Frequency Drive (VFD) Option: Smooth acceleration/deceleration.
Technical Specifications
| Parameter | Value |
|---|---|
| Travel Speed | 20 m/min (standard) |
| Control Mode | Pendant/remote/wireless |
| Rail Compatibility | DIN 536/EN 15011 standard beams |
| Max Span | Up to 30m (customizable) |
Best Applications
✔ Warehouse logistics (heavy pallet handling)
✔ Shipbuilding yards (moving large components)
✔ Production lines requiring lateral mobility
Comparative Summary: Which One to Choose?
| Factor | Low Headroom | Fixed | Traveling |
|---|---|---|---|
| Space Efficiency | ★★★★★ | ★★☆☆☆ | ★★★★☆ |
| Mobility | ★☆☆☆☆ | ★☆☆☆☆ | ★★★★★ |
| Cost | ★★★☆☆ | ★★★★★ | ★★☆☆☆ |
| Precision | ★★★★★ | ★★★★☆ | ★★★☆☆ |
Decision Guide
- Choose Low Headroom if vertical space is limited.
- Opt for Fixed for budget-friendly, stationary lifting.
- Select Traveling for flexible, large-area coverage.
Applications of 15 Ton Electric Chain Hoist
Dongqi’s 15 ton electric chain hoist for sale is widely used in:
✔ Steel & Metal Industry – Handling coils, molds, and heavy machinery
✔ Construction Sites – Moving prefabricated structures
✔ Shipbuilding & Ports – Loading/unloading heavy components
✔ Warehousing – Stacking large containers
Why Buy from Dongqi Crane?
✅ 20+ Years of Manufacturing Experience
✅ Custom Solutions (explosion-proof, high-speed, remote-controlled)
✅ After-Sales Support (spare parts, maintenance, global shipping)
Get Your 15 Ton Electric Chain Hoist Today!
For the best 15 ton electric chain hoist price and specifications, contact Dongqi Crane for a free quote tailored to your needs.
