10 Ton Electric Chain Hoist
When heavy lifting is required in industrial settings, a 10 ton electric chain hoist provides the perfect combination of power, precision, and reliability. Dongqi Crane, a trusted manufacturer of high-performance lifting equipment, offers a range of 10 ton electric chain hoists, including low headroom, fixed, and trolley-mounted models, designed to meet diverse industrial needs.
This comprehensive guide explores the best 10 ton electric chain hoist options, their dimensions, price, and key advantages, helping you make an informed purchasing decision.
Why Choose a 10 Ton Electric Chain Hoist from Dongqi Crane?
Electric chain hoists are essential for industries such as:
✔ Manufacturing & Assembly – Precise handling of heavy machinery.
✔ Construction & Warehousing – Efficient material movement.
✔ Shipbuilding & Automotive – Safe lifting of large components.
Key Benefits of Dongqi Crane’s 10 Ton Electric Chain Hoist:
- High Load Capacity – Reliably lifts up to 10 tons.
- Smooth Operation – Variable speed control for precision.
- Durable Construction – Alloy steel chain & corrosion-resistant coating.
- Advanced Safety – Overload protection, emergency stop, and thermal cut-off.
Dongqi Crane’s 10 Ton Electric Chain Hoist Models – Detailed Specifications
Dongqi Crane offers three specialized configurations of 10 ton electric chain hoists to meet different industrial lifting requirements. Each model is engineered with precision and built to deliver maximum performance in its intended application. Below is a detailed breakdown of our three main product categories:

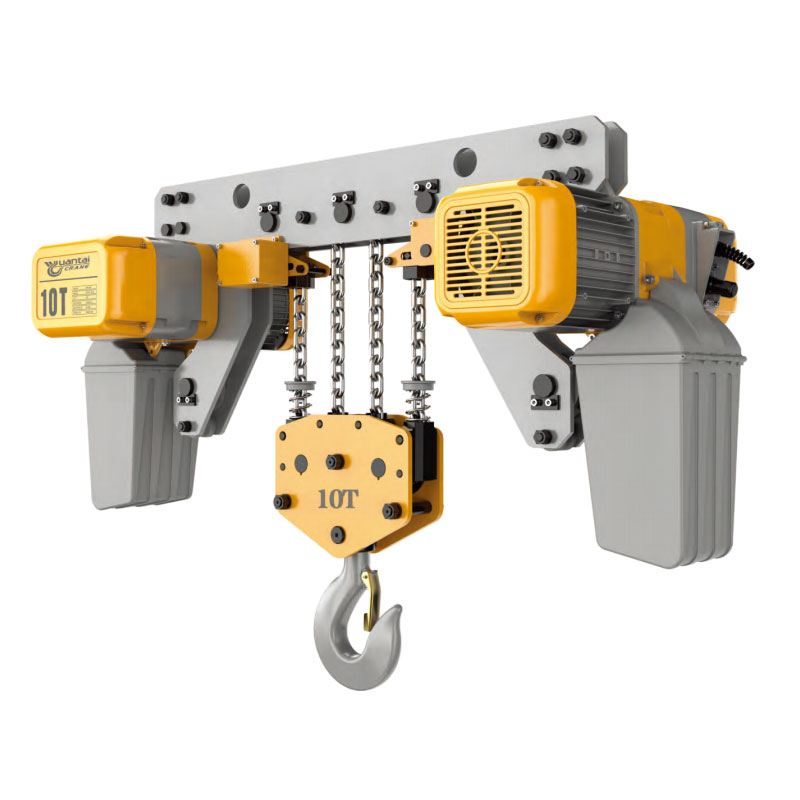

1. Low Headroom 10 Ton Electric Chain Hoist
(Ideal for spaces with limited vertical clearance)
Key Features:
- Ultra-Compact Design: Minimizes dead space with optimized dimensions for low ceiling applications.
- Precision Lifting: Smooth operation with dual-speed options (standard: 3/1 m/min).
- Robust Construction: Reinforced steel housing and high-grade alloy load chain.

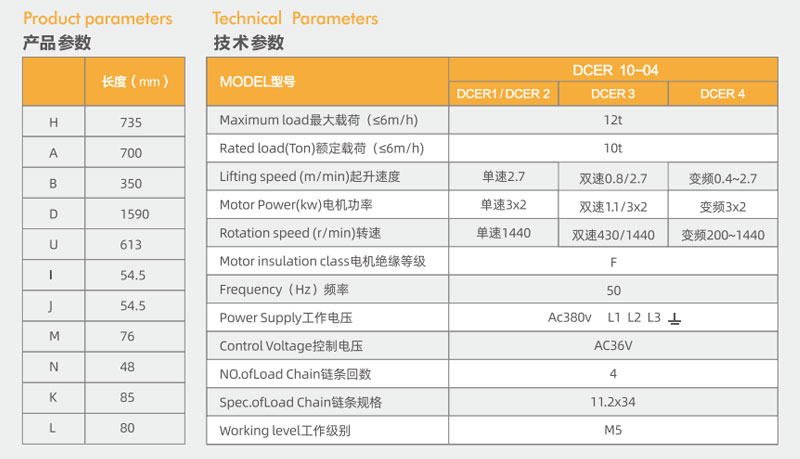

Technical Specifications:
| Parameter | Specification |
|---|---|
| Lifting Capacity | 10 tons |
| Lifting Speed | 3 m/min (standard), 1 m/min (precision) |
| Chain Diameter | 14 mm (Grade 80 alloy steel) |
| Motor Power | 7.5 kW (thermally protected) |
| Protection Class | IP55 (dust & water-resistant) |
| Dimensions (LxWxH) | 700 x 450 x 500 mm |
| Net Weight | ~650 kg |
Best For:
✔ Automotive assembly lines
✔ Small workshops with height restrictions
✔ Indoor construction sites
2. Fixed Mount 10 Ton Electric Chain Hoist
(Designed for stationary heavy lifting applications)
Key Features:
- Heavy-Duty Performance: Engineered for continuous operation in demanding environments.
- Easy Installation: Bolt-on mounting system for quick setup.
- Enhanced Safety: Dual braking system with emergency stop function.

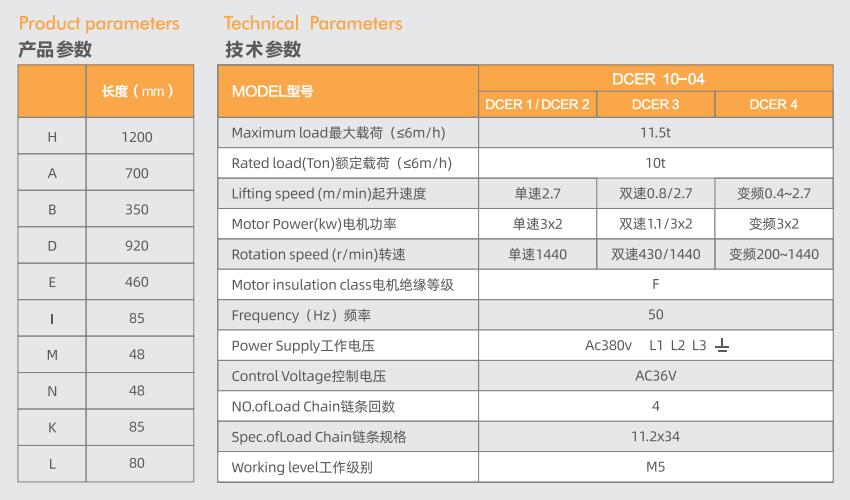

Technical Specifications:
| Parameter | Specification |
|---|---|
| Lifting Capacity | 10 tons |
| Lifting Speed | 5 m/min (standard), 1 m/min (micro-speed) |
| Chain Diameter | 16 mm (Grade 100 alloy steel) |
| Motor Power | 10 kW (duty cycle: 40% ED) |
| Protection Class | IP54 (suitable for most industrial environments) |
| Dimensions (LxWxH) | 800 x 500 x 600 mm |
| Net Weight | ~850 kg |
Best For:
✔ Manufacturing plants
✔ Steel fabrication workshops
✔ Power station maintenance

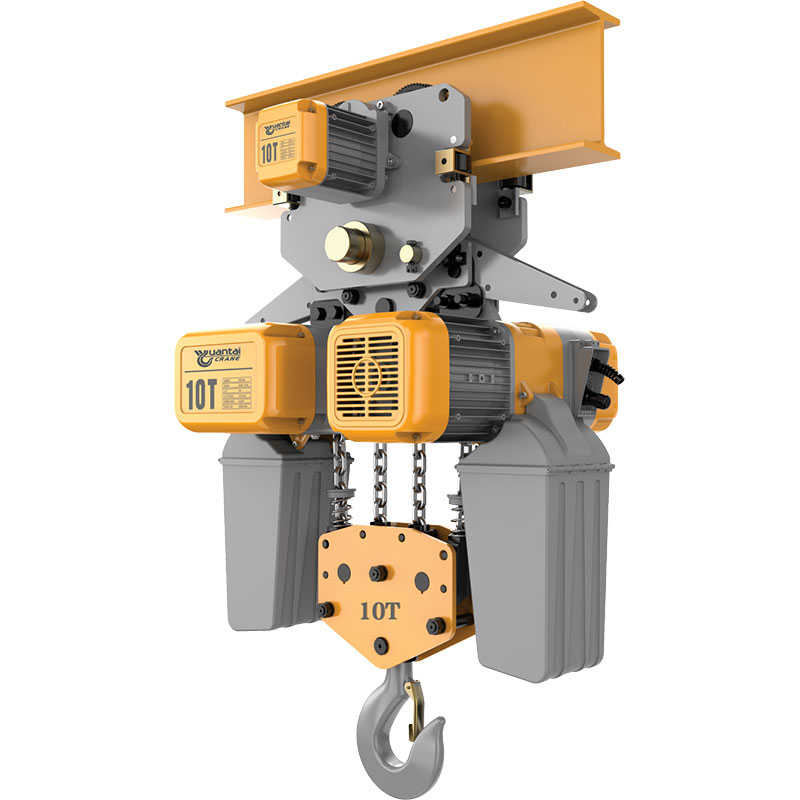

3. Trolley-Mounted 10 Ton Electric Chain Hoist
(For applications requiring horizontal movement)
Key Features:
- Motorized Travel: Smooth movement along I-beam tracks (standard travel speed: 20 m/min).
- Versatile Control: Pendant or wireless remote operation available.
- Load Stabilization: Anti-sway technology for precise positioning.

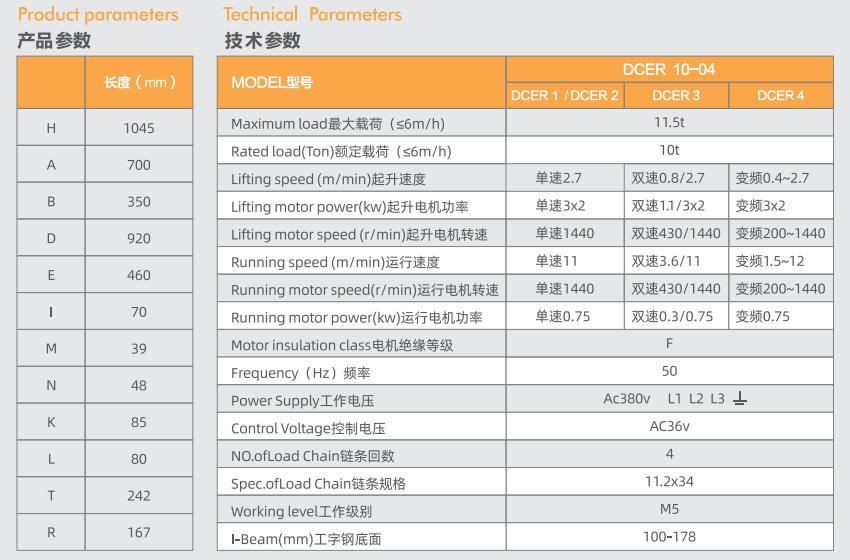

Technical Specifications:
| Parameter | Specification |
|---|---|
| Lifting Capacity | 10 tons |
| Lifting Speed | 4 m/min (standard), 0.8 m/min (precision) |
| Travel Speed | 20 m/min (adjustable) |
| Chain Diameter | 14 mm (Grade 80 alloy steel) |
| Motor Power | Lifting: 7.5 kW / Travel: 1.5 kW |
| Beam Compatibility | Works with 150-300mm I-beams |
| Protection Class | IP55 (suitable for harsh environments) |
| Dimensions (LxWxH) | 900 x 550 x 650 mm |
| Net Weight | ~950 kg |
Best For:
✔ Warehouse material handling
✔ Shipyard operations
✔ Large-scale assembly lines
Why Choose Dongqi Crane’s 10 Ton Models?
Superior Engineering
- All models feature high-torque motors with thermal protection for extended service life.
- Grade 80/100 alloy chains exceed industry safety standards.
Customization Options
- Voltage options: 220V/380V/415V/460V (50Hz or 60Hz)
- Explosion-proof versions available (ATEX certification)
- Special chain lengths upon request
Competitive Advantage
Compared to generic hoists, Dongqi Crane’s models offer:
✅ 30% longer service life due to premium components
✅ 20% more energy efficient operation
✅ Comprehensive 2-year warranty with global service support
Selecting the Right Model for Your Needs
| Consideration | Low Headroom | Fixed Mount | Trolley-Mounted |
|---|---|---|---|
| Space Constraints | Best option | Good | Requires beam track |
| Mobility Needs | Limited | None | Full horizontal movement |
| Precision Requirements | High | Medium | High (with anti-sway) |
| Typical Price Range | $3,200-$4,800 | $3,000-$4,500 | $4,000-$6,500 |
For expert assistance in selecting the perfect 10 ton electric chain hoist, contact Dongqi Crane’s engineering team today. We provide:
- Free application consultation
- Customized solution development
- On-site installation support
Upgrade your material handling system with Dongqi Crane’s professional-grade hoists – where performance meets reliability!
(All specifications subject to technical improvements. Consult factory for latest details.)
Comparison: Dongqi Crane vs. Other Brands
| Feature | Dongqi Crane 10 Ton Hoist | Generic Market Hoist |
|---|---|---|
| Lifting Capacity | 10 tons (tested & certified) | May vary under load |
| Motor Efficiency | High-torque, energy-saving | Standard motor |
| Safety Features | Overload protection, emergency brake | Basic safety only |
| Durability | Reinforced alloy chain, IP55 protection | Standard chain, prone to wear |
| Warranty | 2+ years, 24/7 support | Limited or no warranty |
Dongqi Crane’s best 10 ton electric chain hoist outperforms competitors in longevity, safety, and efficiency.
Where to Buy a 10 Ton Electric Chain Hoist for Sale?
Looking for a 10 ton electric chain hoist for sale? Dongqi Crane provides:
✅ Factory-direct pricing (no middlemen).
✅ Customizable options (voltage, chain length, control type).
✅ Global shipping & installation support.
Visit our official website or contact our sales team for the best deals!
Conclusion: Why Dongqi Crane is the Top Choice
Whether you need a low headroom, fixed, or trolley-mounted 10 ton electric chain hoist, Dongqi Crane delivers:
✔ Superior lifting performance (10-ton capacity).
✔ Optimized dimensions for space efficiency.
✔ Competitive pricing & long-term reliability.
✔ Industry-leading safety & durability.
Upgrade your lifting operations with Dongqi Crane’s premium 10-ton electric chain hoists today!
